Vehicle Info NeededJEGSPART NUMBER: 555-80850
Wheel/Stud Bolt Pattern Gauge Inch and Metric Works With:
$1289$13.99You Save$1.10
More than 10 available
Ships Today
Lowest Price Guarantee- Wheel/Stud Bolt Pattern Gauge
- Inch and Metric
Works With: - 4-Lug (4.25" to 5.5" & 98mm to 140mm)
- 5-Lug (4.5" to 5.5" & 100mm to 150mm)
- 6-Lug (4.5" to 5.5" & 114mm to 140mm)
- 8-Lug (6.5" & 170mm)
- Can be used to measure pattern size of a wheel or the wheel studs on a vehicle
- Works with most 4, 5, 6 and 8 lug wheels with the following specifications: 4-lug (4.25" to 5.5" & 98mm to 140mm), 5-lug (4.5" to 5.5" & 100mm to 150mm), 6-lug (4.5" to 5.5" & 114mm to 140mm), & 8-lug (6.5" & 170mm)
- Provides inch and metric dimensions
- Made with high quality components and assembly

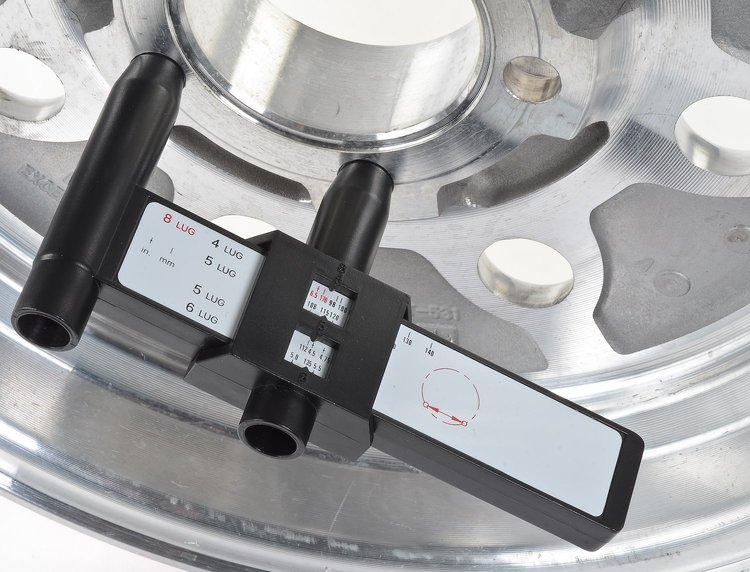

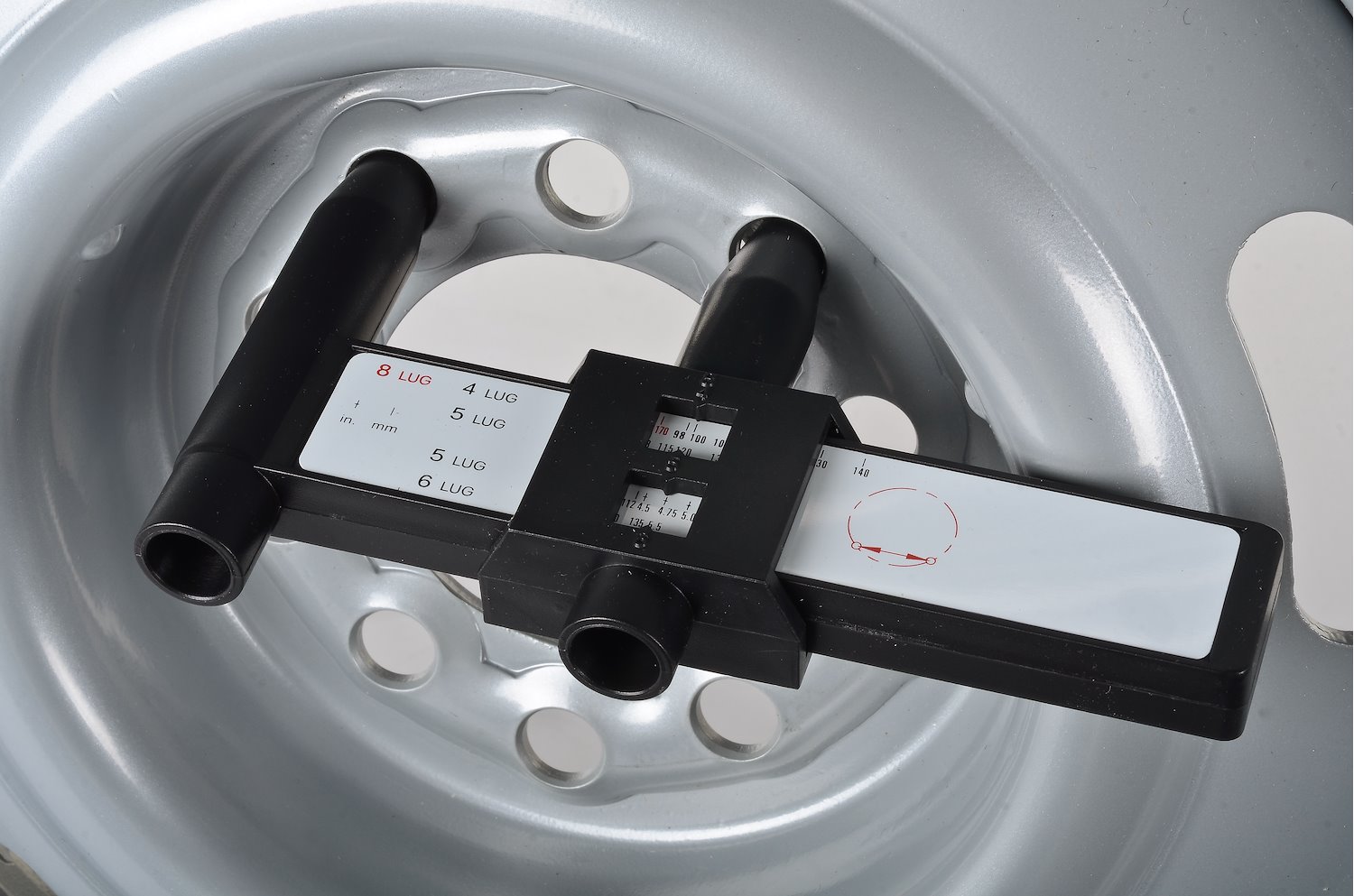

- One per package Use on Wheel or Wheel Studs/Hub as shown:
JEGS Bolt Pattern Gauge can be used to measure pattern size of a wheel or the wheel studs on a vehicle. Works with most 4, 5, 6 and 8 lug wheels. Provides inch and metric dimensions.
Show More
Part TypeLug Pattern Tool
Product LineJEGS Wheel/Stud Bolt Pattern Gauge
BrandJEGS
Package Height0.8
Package Width4.4
Package Length8.7
Weight0.25 PG
Part CategoryAccessories
MaterialPlastic
Part FitmentUniversal
FinishBlack
Package Qty1
Package TypeEA
No Questions
No Reviews
