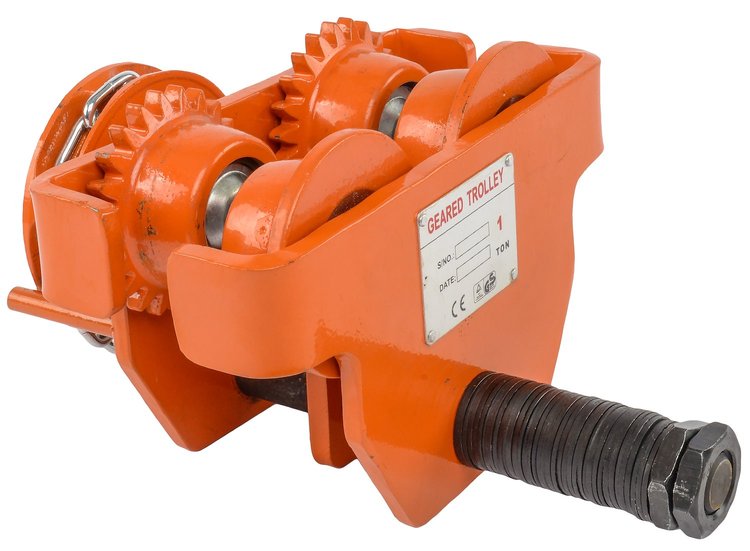

Gantry Trolley 1-Ton
InfoVehicle Info Needed
JEGSPART NUMBER: 555-81247

Gantry Trolley 1-Ton

$8499$93.99You Save$9.00
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Accessories
Gantry Trolley
  • 1-Ton
  • Manual Geared
  • 2.5" to 5" Flange
  • 4" to 19" Beam Height
  • Orange Powder Coated Steel
  • Includes 10' Chain

    JEGS 555-81247 Gantry Trolley Features:

    • Smoothly operates over a straight or curved track with a hand chain gear system and side plates to ensure the 10’ chain stays in the track
    • Ideal for use in garages, workshops, and other areas where gantries are installed or where heavy loads are lifted
    • Mounts onto a 2.5” to 5” wide flange, with trolley guards to ensure safety, and fits beams 4” to 19” high
    • Adjustable height gantry crane available separately under JEGS brand part number 555-81245
    • Specifications: 2.5" to 5" flange, 4" to 19" beam height
    JEGS Gantry Trolley is ideal for use in garages, workshops, and other areas where gantries are installed or where heavy loads are lifted. Smoothly operates over a straight or curved track with a hand chain gear system and side plates to ensure the 10’ chain stays in the track. Mounts onto a 2.5” to 5” wide flange, with trolley guards to ensure safety, and fits beams 4” to 19” high.

      • Let a Gantry Do the Heavy Lifting

      JEGS Gantry Crane is an economical and user-friendly solution to regularly lifting heavy loads, allowing you to work efficiently, while protecting your back and your precious cargo. With a 1-ton capacity, this gantry crane offers adjustable height and span and can easily handle most jobs. It's also easy to assemble and features 360-degree rotation casters and large molded wheels for smooth movement while protecting your floors. Please note that trolleys and hoists are not included (sold separately).

    Part TypeTrolley
    Product LineJEGS Gantry Crane & Accessories
    BrandJEGS
    Package Height7.5
    Package Width9.6
    Package Length10.8
    Weight20.1 PG
    Part CategoryAccessories
    Minimum Radius Curve36"
    Load Rating (Lbs.)2,000
    Beam Width Range2.680" to 5.120"
    VoltageN/A
    Trolley TypeManual
    Minimum Beam Height4"
    Trolley SpeedN/A
    Number Of SpeedsN/A
    Part FitmentUniversal
    Trolley Wheel Diameter3.000"
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
