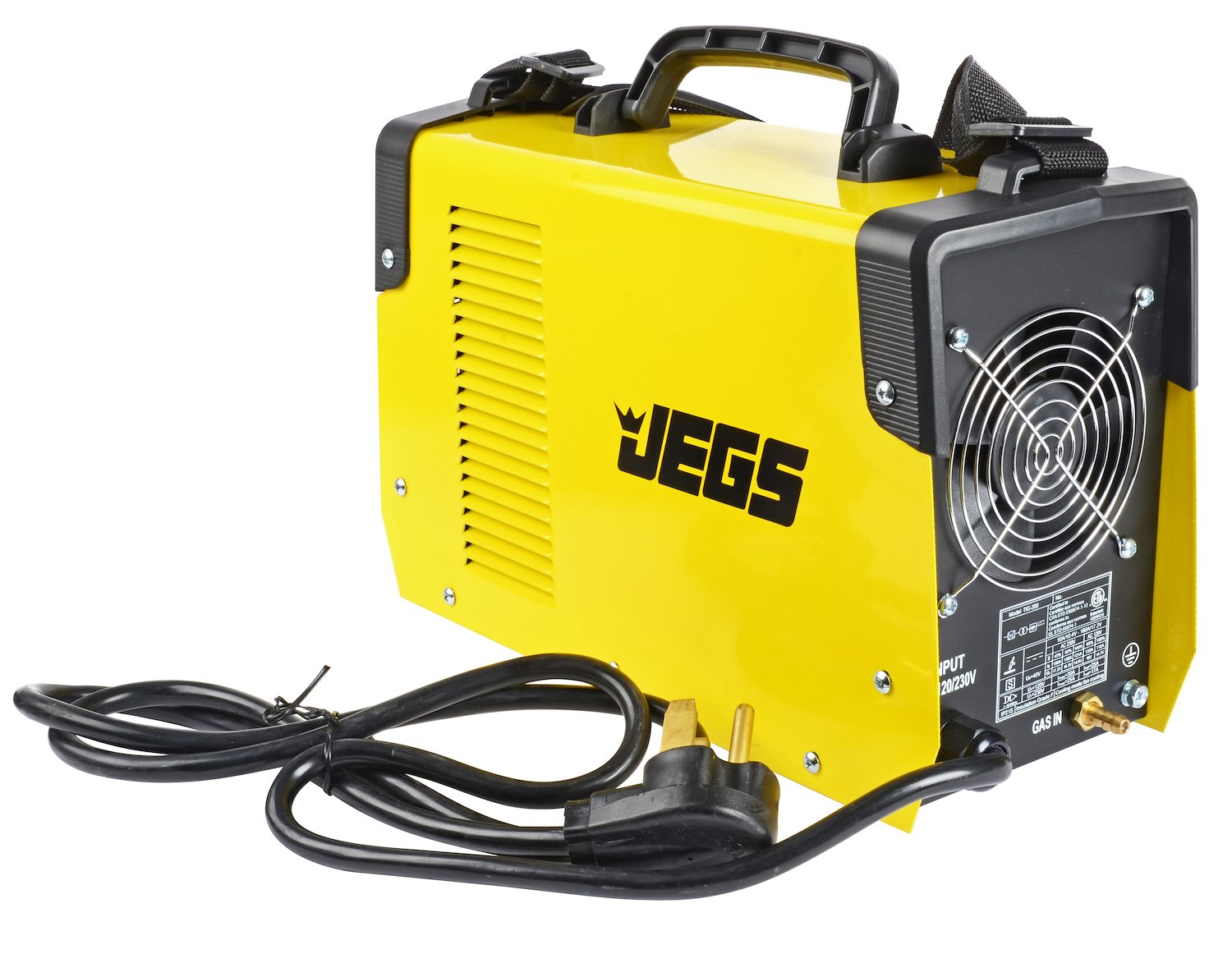

TIG 200 DC Welder [120/220V]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-81542

TIG 200 DC Welder [120/220V]

$21209$369.99You Save$157.90
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

25 ft. Heavy-Duty Welder Extension Cord

JEGS

25 ft. Heavy-Duty Welder Extension Cord

Part Number : 555-81602
$11599$199.99
You Save$84.00
Welding Cart [30 in. L x 12.5 in. W x 16 in. H]

JEGS

Welding Cart [30 in. L x 12.5 in. W x 16 in. H]

Part Number : 555-81543
$8499$93.99
You Save$9.00
Welding Helmet Adjustable

JEGS

Welding Helmet Adjustable

Part Number : 555-81544
$4399$59.99
You Save$16.00
3-Piece Wire Brush Set [Stainless Steel, Brass Bristles with Plastic Handle]

JEGS

3-Piece Wire Brush Set [Stainless Steel, Brass Bristles with Plastic Handle]

Part Number : 555-W1149
$1099$12.99
You Save$2.00

TIG Welders
TIG 200 DC Welder
  • 120V or 220V Power
  • Duty Cycle: 45% @ 180A @ 230V

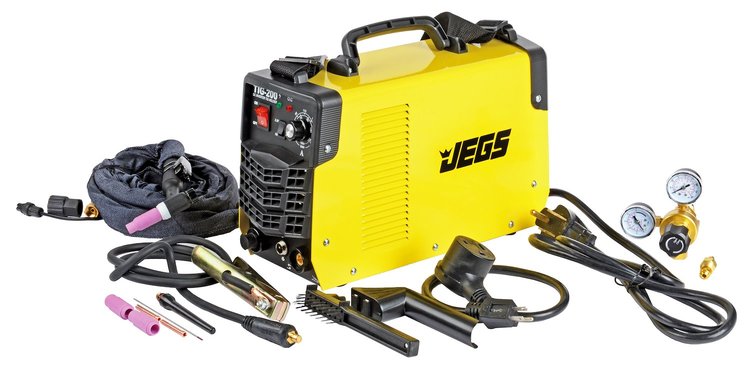

  • Includes:
    • Power Cord w/120V Adapter
    • TIG Welding Torch
    • Ground Clamp & Cable
    • Hand Held Mask
    • Wire Brush
    • Regulator

      JEGS 555-81542 TIG 200 DC Welder Features:

      • Out-of-the-box ready to use on many different welding applications
      • Accessories included: hand-held mask, wire brush, regulator, ground clamp & cable, tig welding torch, and power cord w/ 120v adapter
      • One-year warranty for peace of mind
      • 120v or 220v design to allow for a more universal plug-in power source
      • Yellow painted finish with JEGS logo for great looks and long life
      • Welds stainless steel, carbon steel, copper, and other color metals
      • Uses Single Phase 120V AC or 220V AC Power
      • Transfer efficiency is above 85%
      • Automatic control or arc initiation, arc stop, and stable arc, which make the best result for the shape and inner quality of the welding surface
      • 14 in. x 6 in. x 11.50 in.
      • Lightweight 20 lbs.

      JEGS 555-81542 TIG 200 DC Welder Note:

      •  This welder will not weld Aluminum or Magnesium. We recommend JEGS 555-81563 for welding these types of metals.

      FAQ

      How thick can a 200 amp TIG welder weld?

      • The JEGS 81542 200 amp TIG welder can weld up to 1/4 in. steel, aluminum, & Stainless and has a 60% duty cycle. It is capable of welding various thicknesses, providing versatility for a wide range of projects. It offers precise control for different materials and thicknesses.
          • Complete Your Project with A Quality MIG or TIG Welder

            JEGS offers affordable high-performance MIG and TIG welders and is suitable for both hobby and professional use. Whether you're a seasoned pro or a newcomer to the welding scene, you'll appreciate the freedom and flexibility of these units. From the workshop to the basement to the garage, we make it easy for you to dive right into the world of fabricating. Simple controls make it easy to set up and dial-in your project. All units include a handheld mask, wire brush, and 1-year warranty. Additional accessories are also available to complete your package.

            Show More

          Part TypeWelder
          Product LineJEGS Welders
          BrandJEGS
          Package Height10.5
          Package Width13.5
          Package Length26.0
          Weight29.42 PG
          Weight20 lb (9.07 kg)
          Part CategoryAccessories
          Efficiency (%)85
          Rated Duty Cycle (%)60 at 150A/16V
          No Load Loss (W)35
          Dimensions14" x 6" x 11.5"
          Input VoltageSingle-Phase 120V
          Open Circuit Voltage45
          Part FitmentUniversal
          Welding Thickness (In.)0.012-0.20
          Product Weight20 lb (9.07 kg)
          Output Power (Kw)3.1
          Output Current Range (Amp)10-200
          Input Current (Amp)25
          Package Qty1
          Package TypeEA
