Differential Pinion Depth Tool Setup Kit [Hard Anodized Aluminum Components]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-81655

Differential Pinion Depth Tool Setup Kit [Hard Anodized Aluminum Components]

$6119$109.99You Save$48.80
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Clamshell Carrier & Pinion Bearing Puller

JEGS

Clamshell Carrier & Pinion Bearing Puller

Part Number : 555-60659
$23399$257.99
You Save$24.00
Pinion Yoke Wrench Fits Various Different Yokes from 2.75 in. to 5.25 in. Wide

JEGS

Pinion Yoke Wrench Fits Various Different Yokes from 2.75 in. to 5.25 in. Wide

Part Number : 555-81656
$3099$33.99
You Save$3.00
1/4 in.Drive Inch Pound Beam Torque Wrench [0-80 in/lb & 0-9 Newton Meters ]

JEGS

1/4 in.Drive Inch Pound Beam Torque Wrench [0-80 in/lb & 0-9 Newton Meters ]

Part Number : 555-M195
$3199$35.99
You Save$4.00
W41065 Shop Press Accessory Kit

JEGS

W41065 Shop Press Accessory Kit

Part Number : 555-W41065
$11899$130.99
You Save$12.00

Ring & Pinion Setup Tool Kit
Differential Pinion Depth Setup Tool Kit
  • Accurately Measures Pinion Depth in 0.001 in. Increments
  • Includes:
    • (1) JEGS Dial Indicator
    • (3) Indicator Extensions
    • Storage Case
    • Instructions

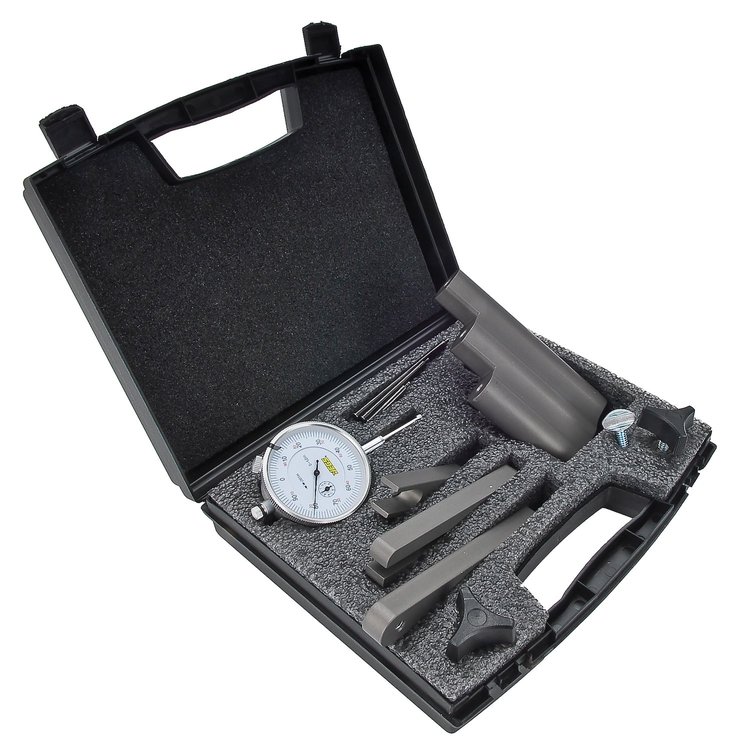

      JEGS 555-81655 Differential Pinion Depth Setup Tool Kit Features:

      • Includes JEGS Dial Indicator, (3) indicator extensions, custom-molded storage case and Instructions
      • Properly set pinion depth to prevent ring gear whining, premature wear, and failure
      • Calibration block machined from aluminum and flat-bottom drilled for pinpoint accuracy
      • Designed for comfortable grip or to use in a vise
      • All aluminum components are hard anodized for a lifetime of strength and durability
      • Accurately measures in 0.001 in. increments

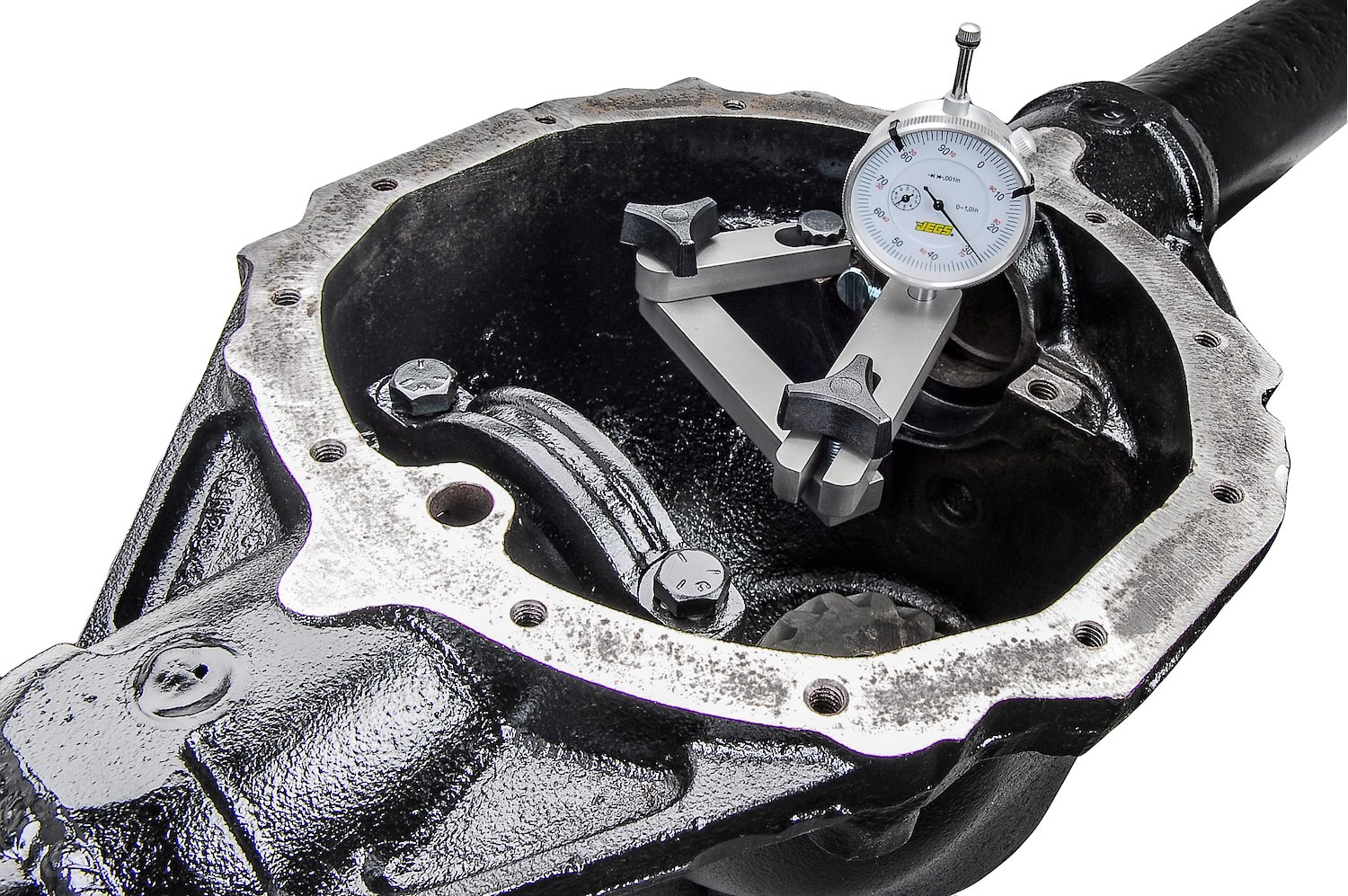

      • Engineered for use with center sections that have 1/2 in. diameter cap bolts
      • Can be used on housings with 5/8 in. diameter bolts by holding the fixture in place for measurement

      FAQ

      What tool are you required to use to correctly set pinion depth?

      • Use a specialized pinion depth gauge such as JEGS 81655 for accurate measurements.
      • JEGS pinion depth tool ensures precise setup for optimal performance.

      What happens if the pinion depth is wrong?

      • Incorrect pinion depth can lead to gear misalignment, performance issues, and possible catastrophic failure.
      • Poorly set pinion depth may result in increased wear and reduced efficiency.
    • Keep it Simple

      JEGS Ring & Pinion Tools make setting up your ring and pinion a piece of cake. These high-quality tools are engineered to work with almost any differential.

      Show More

    Part TypeDifferential Pinion Setting Tool
    Product LineJEGS Ring & Pinion Tools
    BrandJEGS
    Package Height3.3
    Package Width9.2
    Package Length10.2
    Weight2.75 PG
    Part CategoryAccessories
    Dial Indicator Range (In.)0-1.000
    Dial Indicator IncludedYes
    MaterialBillet Aluminum
    Part FitmentUniversal
    FinishHard anodized
    Dial Indicator Increments0.001 in (0.025 mm)
    Package Qty1
    Package TypeEA
