• in. lbs. (Inch Pounds)
• ft. lbs. (Foot Pounds)
• Nm (Newton Meters)
• Kgf (Kilogram Force)

JEGS 555-81694 1/2 in. Drive Digital Torque Wrench

JEGS 81694 digital torque wrench is intended as a fastener tightening and disassembly torque detection tool. To provide the most accurate readings this tool utilizes strain gauge measurement principles and programmed data processing technology.

JEGS 555-81694 1/2 in. Drive Digital Torque Wrench Features:

• 1/2 in. Drive
• 21 in. Chrome Plated Handle with JEGS Logo and Plastic Grip
• Clockwise and Counter Clockwise Rotation
• Easy to use Push Button Displays
• Multi-mode Settings
• On/Off, Clear, Confirm, Return
• Unit of Measure: in. lbs. (Inch Pounds), ft. lbs (Foot Pounds), Nm (Newton Meters), and Kgf (Kilogram Force)
• Accurate Indication Value
• Sound Alarm
• Vibration reminder
• Light Prompt
• While Applying Pressure to the Fastener the Display Will Show the Real-Time Torque
• Once Pressure is Released from the Torque Wrench, the Maximum Torque Applied Will be Displayed on the Screen
• Digital Display Torque Range
• 97.3 - 1947.6 in. lbs.
• 8.1-162.2 ft. lbs.
• 11-220 Nm (Newton Meters)
• 1.1 - 22.4 Kgf (Kilogram Force)
• Torque Reminder Functions Prevent Under and Over Torquing:
• Preset Torque at 80 percent (green flash +0.5Hz buzzer)
• Preset Torque at 90 percent (green solid light +1.0Hz buzzer)
• Preset Torque at 100 percent (red light - loud buzzer)
• Data Storage, Stores up to 500 Torque Settings
• Automatic Shut-Down: Will Automatically Shut Down After (5) Five Minutes in Standby Mode
• Low Battery Reminder: Will Automatically Shut Down After (5) Five Buzzes

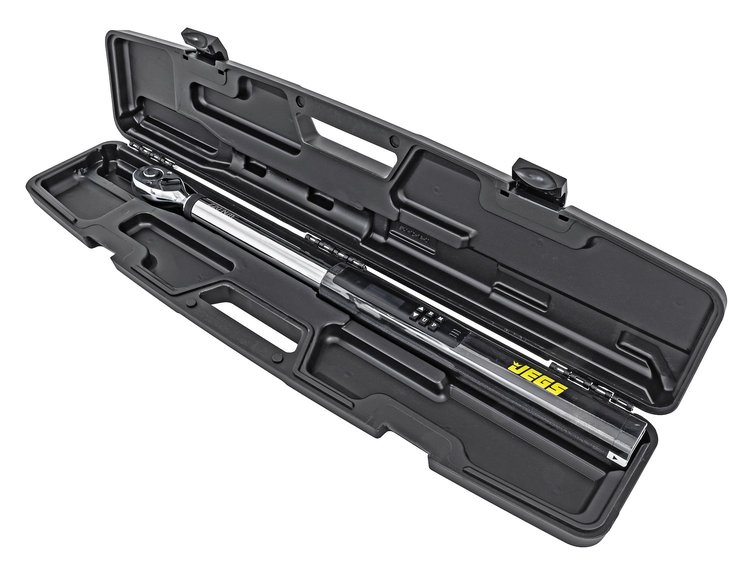

• Includes: (2) AA Batteries, Instructions, and Convenient Transport/Storage Case

JEGS 555-81694 1/2 in. Drive Digital Torque Wrench Notes:

• Before using this digital torque wrench, it is crucial to review the provided instructions. This is essential for guiding you through the setup and operation to ensure the best possible results.
• Please ensure that you check or calibrate this digital torque wrench after 12 months or 5,000 uses. Contact your local tool supply company for details.
• Widely Used in Automotive and Aerospace Fields, this Torque Wrench Ensures Proper Assembly.
