Wheel Bolt Pattern

JEGS 81732

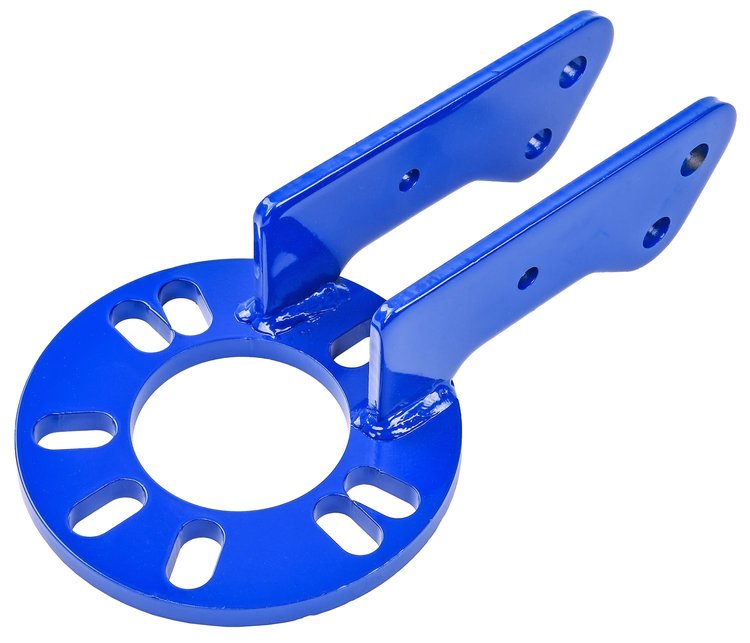

Expand the uses of your fender roller with this adapter from JEGS. Designed to fit the 555-81730 JEGS Fender Roller, this part is a great addition to your toolbox. Accommodate larger bolt patterns and up to 6-studs to take into account trucks and large cars. Easily installed, you only need to remove two screws and then you're ready to go.

See the above link to learn how to measure your wheel bolt pattern to ensure proper fitment.

Features

• Adapter Thickness: .380 in.
• Outside Diameter: 5 7/8 in.
• Arm Length: 6 1/2 in.
• Lug Holes: 8 (To fit numerous 5 and 6 lug patterns)

Fitment

• 5 x 5 in. (127 mm)
• 5 x 5.040 in. (128 mm)
• 5 x 5.120 in. (130 mm)
• 5 x 5.310 in. (135 mm)
• 5 x 5.500 in. (139.7 mm)
• 5 x 5.510 in. (140 mm)
• 5 x 5.910 in. (150 mm)
• 5 x 6 in. (152.4 mm)
• 6 x 5 in. (127 mm)
• 6 x 5.120 in. (130 mm)
• 6 x 5.200 in. (132 mm)
• 6 x 5.310 (135 mm)
• 6 x 5.490 in. (139.4 mm)
• 6 x 5.500 in. (139.7 mm)
