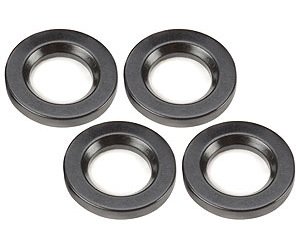

Head Bolt Washers
- Head Bolt Washers
- 0.812" OD x 0.120" Thick
- 4/pkg
Fits: - Small Block & Big Block Chevy
- Small Block Ford 289-302/5.0L
- 7/16" Head Bolts
- Made in the USA
JEGS Head Bolt Washers are machined from 4130 chromemoly steel, heat treated for durability and black oxide coated. Double disc ground to insure parallel surfaces for accurate torque readings and minimize the chance of galling your expensive cylinder heads with the bolt head. Features a chamfered side for the large radii from the shank to underside of the bolt head. Fits 7/16" head bolts common to Small Block/Big Block Chevy and Small Block Ford 289-302/5.0L. Made in the USA.
Note: an edge may need to be trimmed (or clipped) for use with large diameter valve springs.
Part TypeWasher
BrandJEGS
Package Height0.2
Package Width4.8
Package Length5.1
Weight0.06 PG
Part CategoryPerformance Parts
Washer Thickness (Mm)3.175
Washer FinishBlack oxide
Washer Inside Diameter (Mm)11.125
Washer Outside Diameter0.812 in (20.6 mm)
QuantitySold as a set of 4
Washer StyleFlat
Washer Thickness0.12 in (3 mm)
Washer Inside Diameter0.438 in (11.1 mm)
Washer MaterialSteel
HardenedYes
Part FitmentUniversal
Washer Outside Diameter (Mm)20.624
Inside Diameter ChamferYes
Package Qty1
Package TypeEA
