Based on the 1959 Cadillac, JEGS tail lights are ideal for custom street rods. Special flush mount die-cast chrome base is easier to install in Hot Rod & Custom Car Applications. A 2-wire (incandescent) or 3-wire (LED) connection allows dual use of tail lights and brake lights/turn signals.

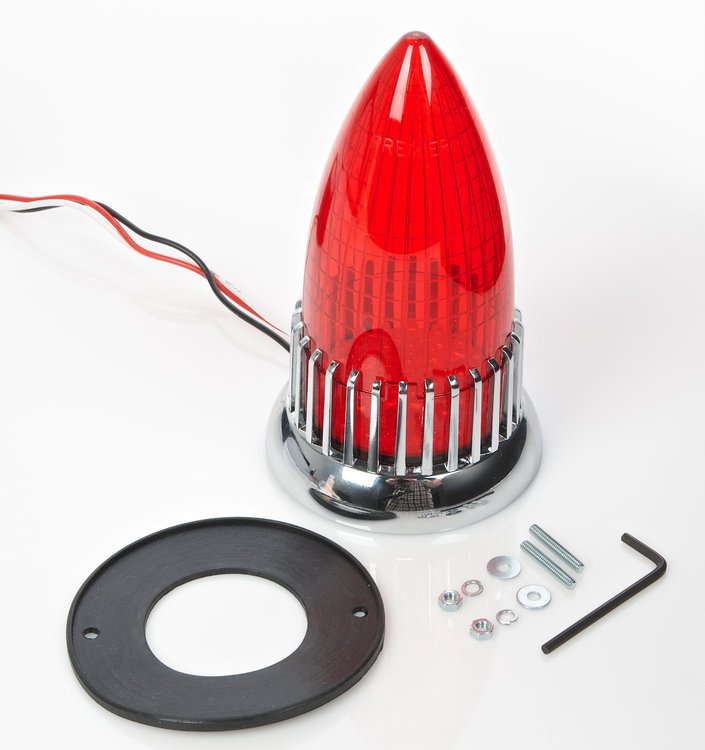

Sold individually, choose from a red, clear, or amber lens with standard incandescent bulb (red or clear w/ LED). Each tail light assembly includes die-cast chrome base, lens, bulb or LED, gasket, and hardware.

Note: Doesn't fit 1959 Cadillac since the mounting base is different.

Dimensions:
• Diameter at the Base: 3-3/4"
• Diameter of Mounting Base Gasket 3-7/8"
• Overall Height: 6-3/8"
• Mounting Studs: 3-1/4" C/L to C/L

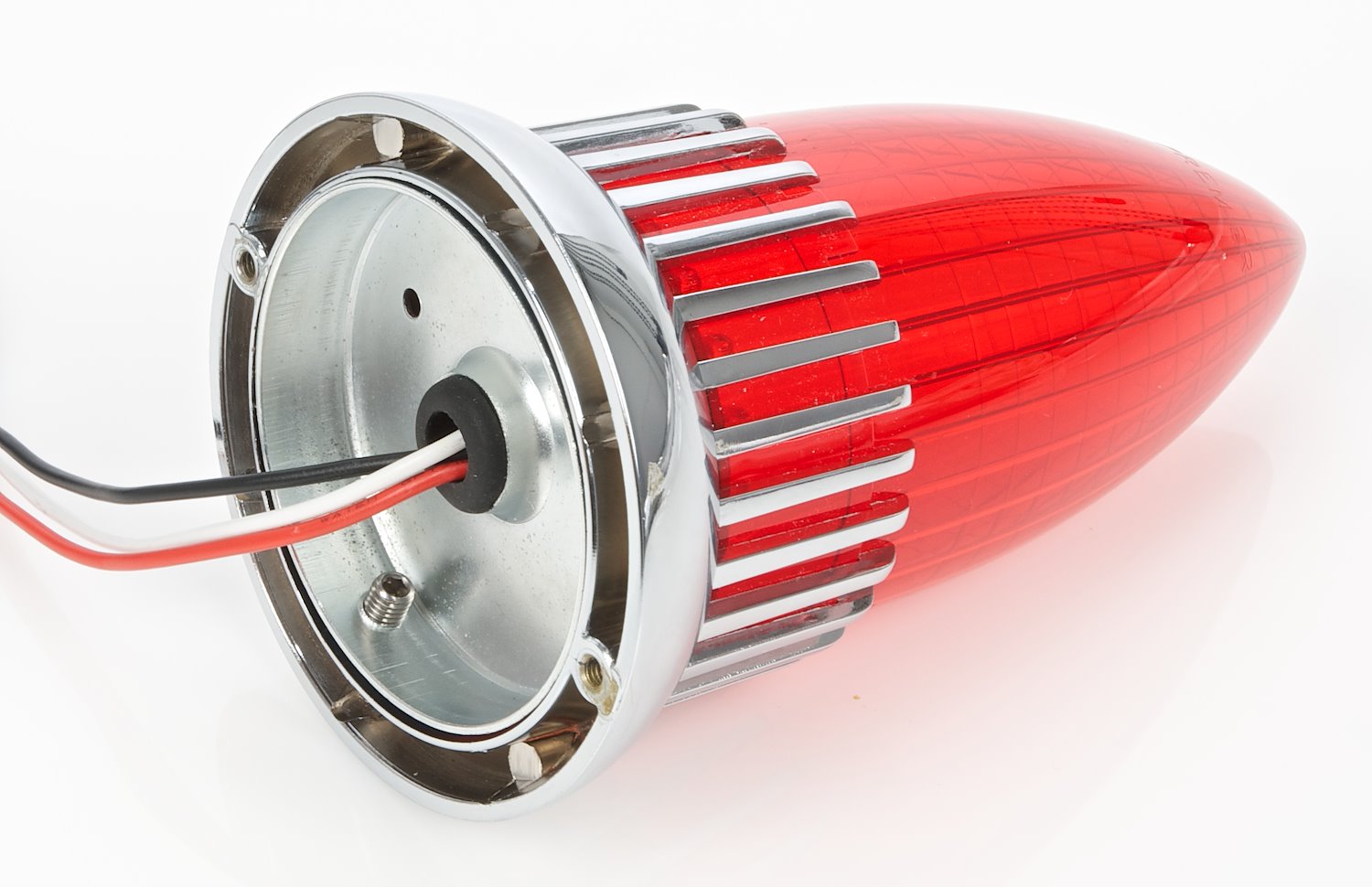

3-Wire Hookup for Dual Circuit with LED:
• Red Wire for Brake Light and Turn Signal
• Black Wire for Tail Light (Running Light)
• White Wire is Ground

Note: LED turn signals require a special LED flasher to operate properly (555-11107 or 555-11108 sold separately)
