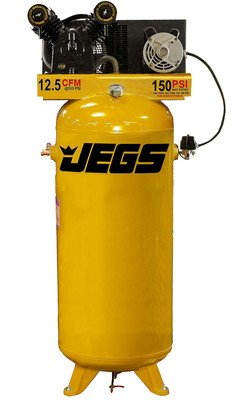

Air Compressor [5 HP, 220 Volt, Single Phase, 60-Gallon Tank]

Name: Air Compressor [5 HP, 220 Volt, Single Phase, 60-Gallon Tank]
Brand: JEGS
SKU: 555-JEGC4160V1
Price: 1199.99 USD
Availability: InStock

^$1,199⁹⁹$1319.99You Save$120.00

Truck Freight

Ships on 11/05/2026

Lowest Price Guarantee

5 HP 220 Volt Vertical Air Compressors

Air Compressor

5 HP, 208/230 (220) Volt Single Phase Motor

Single Stage Compressor

12.5 cfm @ 100 psi

Rated @ 150 max psi

Vertical Tank with 60-Gallon Capacity

Dimensions: 27.500 in. L x 23 in. W x 66 in. H

Weight: 224 lbs.

JEGS 555-JEGC4160V1 Air Compressor Features:

Thermally Protected 5 HP 208/203 (220) Volt Single Phase Motor
No Magnetic Starter Required
Rugged Single Stage Compressor with Dual Cast Iron Cylinders
V-Style Design Minimizes Vibration, Improves Cooling, & Extends Compressor Life
Individual and removable Cylinders for Smoother Cooler Operation
Heavy Duty Pressure Switch with On/Off Control
Metal Air Filters With "Auto Drop" Feature
Convenient Oil Drain in Front of Unit
60-Gallon ASME Registered Vertical Tank, 150 PSIG Rating
Easy-View Oil Sight Gauge
High-Efficiency Reed Valves for Maximum Performance
Efficient Heat Removal from Fly Wheel for Cooler Running & Longer Life
Sturdy Metal Belt Guard
Outlet Valve Included

Air Compressors with Maximum Air Flow for Every Project

JEGS Professional Hi-Performance Air Compressors are suitable for tasks that require maximum airflow, such as automotive restoration and home remodeling projects. These stationary and portable air compressors have large, rugged air tanks and thermally protected motors to allow for long periods of uninterrupted use and extra durability. Available in 3, 5, 6.5, and 7.5 horsepower 110, 220-volt electric, and 5.5, 9, and 13 horsepower gas models, perfect for DIY projects to the professional air compressor user.

Part TypeAir Compressor

Product LineJEGS Professional Air Compressors

BrandJEGS

Package Height22.0

Package Width27.0

Package Length70.0

Weight240.0 PG

Part CategoryAccessories

Tank PositionVertical

Power TypeElectric

Cubic Feet Per Minute Rating12.5cfm @ 100psi

QuantitySold individually
