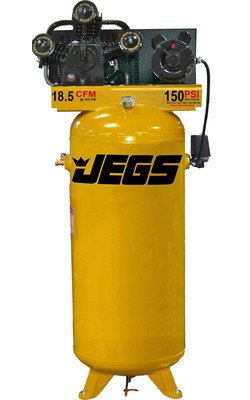

Air Compressor [5 HP, 220 Volt, Single Phase, 60 Gallon Tank]

Name: Air Compressor [5 HP, 220 Volt, Single Phase, 60 Gallon Tank]
Brand: JEGS
SKU: 555-JEGC5160V1
Price: 1669.99 USD
Availability: InStock

^$1,669⁹⁹

Truck Freight

Ships on 09/14/2026

Lowest Price Guarantee

5 HP 220 Volt Vertical Air Compressors

Air Compressor

5 HP 208/230 (220) Volt Single Phase Motor

Single Stage Compressor

18.5 cfm @ 100 psi

Rated @ 150 max psi

Vertical Tank with 60 Gallon Capacity

Dimensions: 31 in. L x 23 in. W x 66 in. H

Weight: 247 lbs.

JEGS 555-JEGC5160V1 Air Compressor Features:

Thermally Protected 208/203 (220) Volt Single Phase Motor
No Magnetic Motor Starter Required
Rugged Single Stage Compressor with Cast Iron Cylinders
V-Style Design Minimizes Vibration, Improves Cooling, & Extends Compressor Life
Individual & Removable Cylinders for Smoother, Cooler Operation & Easy Maintenance
Heavy Duty Pressure Switch with On/Off Control
60-Gallon ASME Registered Vertical Tank, 150 PSIG Rating
Premium Air Filters With "Auto Drop" Replacement Feature
Pressure Gauge
Convenient Extended Oil Drain, & Conveniently Located Ball Valve Drain on Front of Tank for Draining Moisture from Tank
Easy-View Oil Sight Gauge
High-Efficiency Reed Valves for Maximum Performance
Efficient Heat Removal from Fly Wheel for Cooler Running & Longer Life
Sturdy Metal Belt Guard
Heavy-Duty 1/2 in. Valve Included
CSA Approved

Air Compressors with Maximum Air Flow for Every Project

JEGS Professional Hi-Performance Air Compressors are suitable for tasks that require maximum airflow, such as automotive restoration and home remodeling projects. These stationary and portable air compressors have large, rugged air tanks and thermally protected motors to allow for long periods of uninterrupted use and extra durability. Available in 3, 5, 6.5, and 7.5 horsepower 110, 220-volt electric, and 5.5, 9, and 13 horsepower gas models, perfect for DIY projects to the professional air compressor user.

Part TypeAir Compressor

Product LineJEGS Professional Air Compressors

BrandJEGS

Package Width247.0

Weight247.0 PG

Part CategoryAccessories

Tank PositionVertical

Power TypeElectric

Cubic Feet Per Minute Rating18.5cfm @ 100psi

QuantitySold individually

Single Or Dual StageSingle

Air Hose IncludedNo
