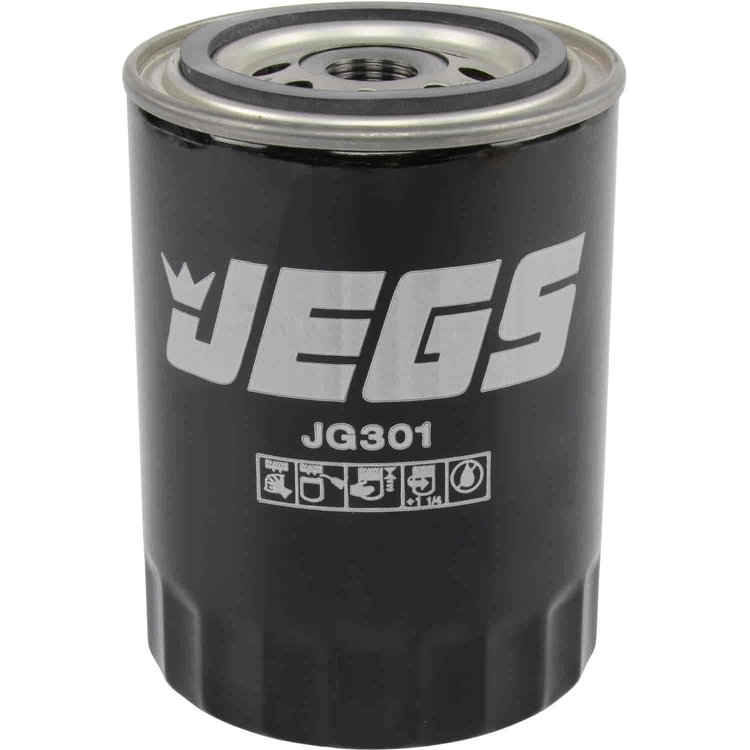

Oil Filter
Performance Oil Filter3.75" Dia. x 5.45" L Thread: 3/4"-16 UNF Steel Housing Perforated Steel Core Silicone Anti-Drain Back Valve SB2099 High Performance Filter Media Compatible with Synthetic & Conventional Oil
Compatible with synthetic and conventional oils Engineered with a high-efficiency synthetic filter media to trap 99% of harmful contaminants to provide longer service intervals Features a perforated steel core, high-strength steel shell, leak-proof double roll seam, and high-burst strength Anti-drain back valve prevents the oil from draining back into crankcase during engine shutdown, thus eliminating dry starts Direct cross reference for the following: ac delco hd222, pf2, pf2149, pf2217, pf41010, pfafl1a, pfl1a, pfw1120, x61, champ labs. hp1, ph2815, ph8a, fram hp1, p8427, ph2815, ph2879, ph3381, ph3569, ph4854, ph7650, ph8a, k&n hp-3001, mobil one m1301, motorcraft afl1, fl1a, fl1hp, fl281, onan 122p193, purolator l30001, l30119, l30257, l30341, l37673, l38257, l39001, l40316, wix 5133, 41515, 51452, 51515, 51525, 51545, 51622, 51775
Carefully constructed to fit within the super-premium oil filter market, this JEGS Performance Oil Filter has a fluted form with the traditional steel endcap design, heavy-gauge coil-spring, high-strength steel back plate, and shell. The ultra-strength housing is made for intense racing conditions providing 400-500 psi burst strength. A silicone anti-drain back valve prevents dry starts while the SB2099 high-performance media delivers exceptional flow, higher capacity, and a 99 percent removal efficiency rate. This JEGS Oil Filter is guaranteed to outlast and outperform any standard filter.
Oil Filter Cross Reference
- AC Delco HD222
- AC Delco PF2
- AC Delco PF2149
- AC Delco PF2217
- AC Delco PF41010
- AC Delco PFAFL1A
- AC Delco PFL1A
- AC Delco PFW1120
- AC Delco X61
- Champ Labs. HP1
- Champ Labs. PH2815
- Champ Labs. PH8A
- Fram HP1
- Fram P8427
- Fram PH2815
- Fram PH2879
- Fram PH3381
- Fram PH3569
- Fram PH4854
- Fram PH7650
- Fram PH8A
- K&N HP-3001
- Mobil One M1301
- Motorcraft AFL1
- Motorcraft FL1A
- Motorcraft FL1HP
- Motorcraft FL281
- Onan 122P193
- Purolator L30001
- Purolator L30119
- Purolator L30257
- Purolator L30341
- Purolator L37673
- Purolator L38257
- Purolator L39001
- Purolator L40316
- WIX 5133
- WIX 41515
- WIX 51452
- WIX 51515
- WIX 51525
- WIX 51545
- WIX 51622
- WIX 51775
Part TypeOil Filter
BrandJEGS
Package Height5.45 in (138.43 mm)
Package Width3.9
Package Length5.5
Weight1.4 PG
Part CategoryPerformance Parts
Smallest Particle Filtered23 microns
Outlet SizeN/A
Inlet SizeN/A
Removal Nut SizeN/A
Oil Filter StyleCanister
Outlet QuantityN/A
QuantitySold individually
Thread Size3/4-16
Inlet AttachmentN/A
Gasket Outside Diameter2.875 in (73.025 mm)
Anti-Drainback ValveYes
Gasket Inside Diameter2.375 in (60.325 mm)
Gasket Thickness0.22 in (5.588 mm)
Outlet AttachmentN/A
Filter Bypass Relief ValveYes
Maximum Burst Pressure (Psi)450
Inlet QuantityN/A
Gasket MaterialNitrile Rubber
Part FitmentDirect Fit
Outside Diameter3.75 in (95.3 mm)
Removal NutNo
Package Qty1
Package TypeEA
