Vehicle Info NeededJEGSPART NUMBER: 555-JG403

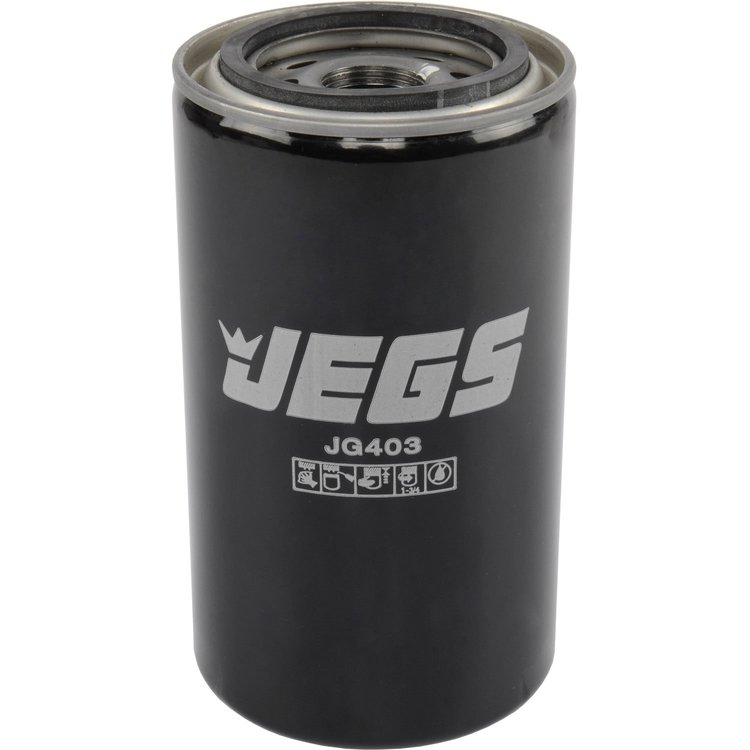

Performance Dodge Diesel Oil Filter, 6.88 in. High, 1"-16 Thread
$710$8.88You Save$1.78
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeOil Filter
Performance Oil Filter3.73" Dia. x 6.88" L Thread: 1"-16 Steel Housing Perforated Steel Core Silicone Anti-Drain Back Valve SB2099 High Performance Filter Media Compatible with Synthetic & Conventional Oil

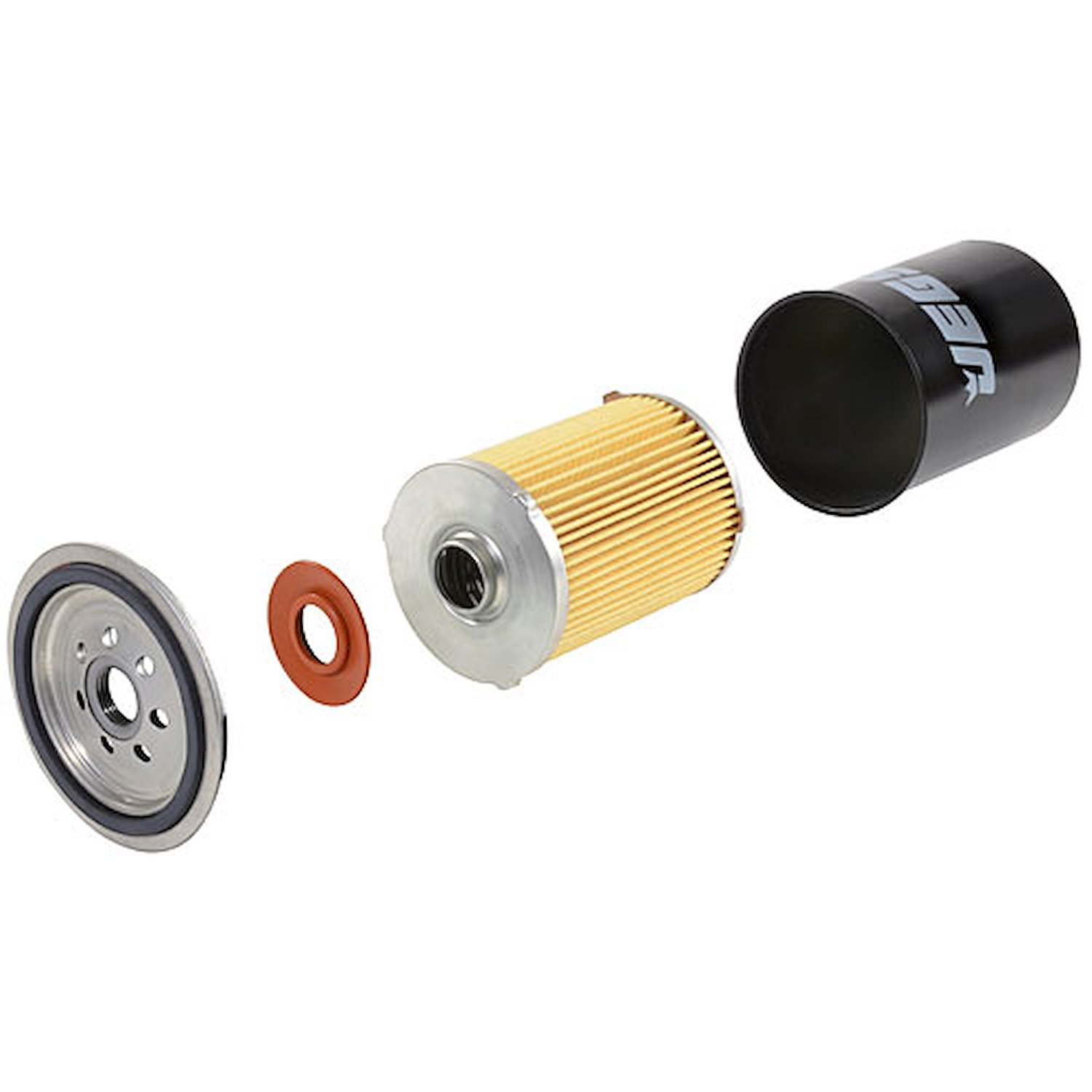

Carefully constructed to fit within the super-premium oil filter market, this JEGS Performance Oil Filter has a fluted form with the traditional steel endcap design, heavy-gauge coil-spring, high-strength steel back plate, and shell. The ultra-strength housing is made for intense racing conditions providing 400-500 psi burst strength. A silicone anti-drain back valve prevents dry starts while the SB2099 high-performance media delivers exceptional flow, higher capacity, and a 99 percent removal efficiency rate. This JEGS Oil Filter is guaranteed to outlast and outperform any standard filter.
Oil Filter Cross Reference
- AC Delco PF1070
- Champ Labs. LFP780
- Fram PH3976
- Fram PH3976A
- K&N HP-4003
- Mobil One M1403
- Motorcraft FL896
- Onan 3903264
- Purolator L44422
- Purolator L45335
- WIX 51607
- WIX 57620
- WIX 57620XE
Part TypeOil Filter
BrandJEGS
Package Height6.88 in (174.752 mm)
Package Width4.0
Package Length7.2
Weight1.34 PG
Part CategoryPerformance Parts
Smallest Particle Filtered23 microns
Outlet SizeN/A
Inlet SizeN/A
Removal Nut SizeN/A
Oil Filter StyleCanister
Outlet QuantityN/A
QuantitySold individually
Thread Size1-16
Inlet AttachmentN/A
Gasket Outside Diameter2.75 in (69.85 mm)
Anti-Drainback ValveYes
Gasket Inside Diameter2.45 in (62.23 mm)
Gasket Thickness0.32 in (8.128 mm)
Outlet AttachmentN/A
Filter Bypass Relief ValveYes
Maximum Burst Pressure (Psi)450
Inlet QuantityN/A
Gasket MaterialNitrile Rubber
Part FitmentDirect Fit
Outside Diameter3.73 in (94.7 mm)
Removal NutNo
Package Qty1
Package TypeEA
No Questions
No Reviews
