This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

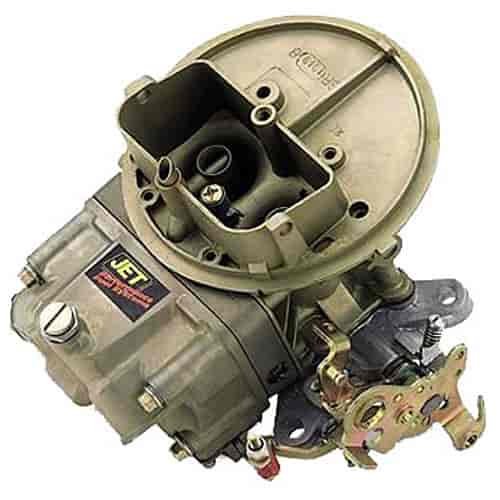

- 350 cfm Stage-1
- Metering Blocks Are Fully Modified
- Jet Power Valve/Accelerator Pump Are Calibrated
- Maximum Off The Corner Torque/Straight Away HP
- Modified To Control Fuel Slosh
- Assembled Using The Highest Quality Components
STAGE 1- A Stage 1 Holley 2bbl, starts with a core that shows the greatest ''stock'' airflow. Metering blocks are fully modified, and the jetting, power valve and accelerator circuits are calibrated for the specific application. These modifications are done to promote maximum off-the-corner torque as well as straight-away horsepower. A .130 needle and seat is installed for high RPM fuel delivery and the float is modified to control fuel slosh during cornering and breaking. The carburetor is assembled using the highest quality components and finished with a 3/8'' fuel inlet.
Show More
STAGE 2- Starts with all of the modifications of a Stage 1 and features a 1.75 throttle bore (butterfly) versus a 1.690 that is stock. This increases airflow and also helps equalize fuel distribution in the intake manifold. This is commonly referred to as a "Cheater" carburetor because it passes any inspection as long as it is not removed from the manifold.
STAGE 3- Features all of the modifications of a Stage 1 & 2 plus the venturi diameter is increased to the maximum allowable size for a substantial increase in airflow. A Stage 3 is intended for classes where full modified carburetors are openly allowed.
