Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

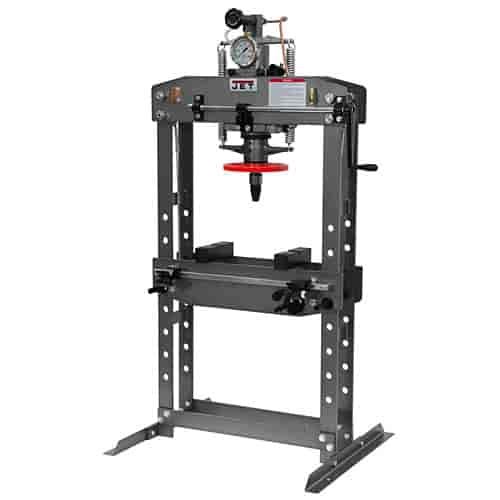

- Hydraulic Shop Press
- Capacity: 15 Tons
- Ram Diameter: 2-1/2"
- Piston Stroke: 4-1/2"
- Screw Stroke: 3-1/8"
- Work Table Size: 24-3/4" x 7-1/2"
- HP-15A
Features: - For pressing, bending and straightening operations
- Easy-to-use, hand-operated with pressure gauge for direct pressure readings
- Tables raise and lower easily with use of hand crank on the 15- and 35- ton models
- Side frames are open for inserting long material
- Fast setup ram extension screw
- Ram moves laterally for added versatility (15- and 35-ton models)
- Two bed plates and pump handles
- Straightness testing support uses centers or v-blocks on the 15 and 35 Ton modelsSpecifications:
- Capacity 15 Tons
- Ram Diameter 2-1/2"
- Piston Stroke 4-1/2"
- Screw Stroke 3-1/8"
- Work Table Size 24-3/4" x 7-1/2"
- Lateral Movement 10-3/16"
- Vertical Table Travel 22-3/16"
- Overall Dimensions (L x W x H) 34" x 30" x 66"
- Weight 435lbs.
JET Tools Hydraulic Shop Presses are built to tackle the pressing, bending, and straightening of larger sheet metal. JET’s Hydraulic Shop Press line consists of a 5, 15 and 35 ton hydraulically powered H frame presses. Each machine is built using heavy steel plate that is electro welded together. These high quality presses come standard with industrial grade hydraulics for extreme durability. These machines are for the serious fabrication and machine shop owner who demands only the best quality.
Show More
Features:
- For pressing, bending and straightening operations
- Easy-to-use, hand-operated with pressure gauge for direct pressure readings
- Tables raise and lower easily with use of hand crank on the 15- and 35- ton models
- Side frames are open for inserting long material
Part TypeShop Press
Product LineJET Tools Hydraulic Shop Presses
BrandJET TOOLS
Package Height17.5
Package Width35.5
Package Length69.0
Weight435.0 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part Number331416
Package Qty1
Package TypeEA
