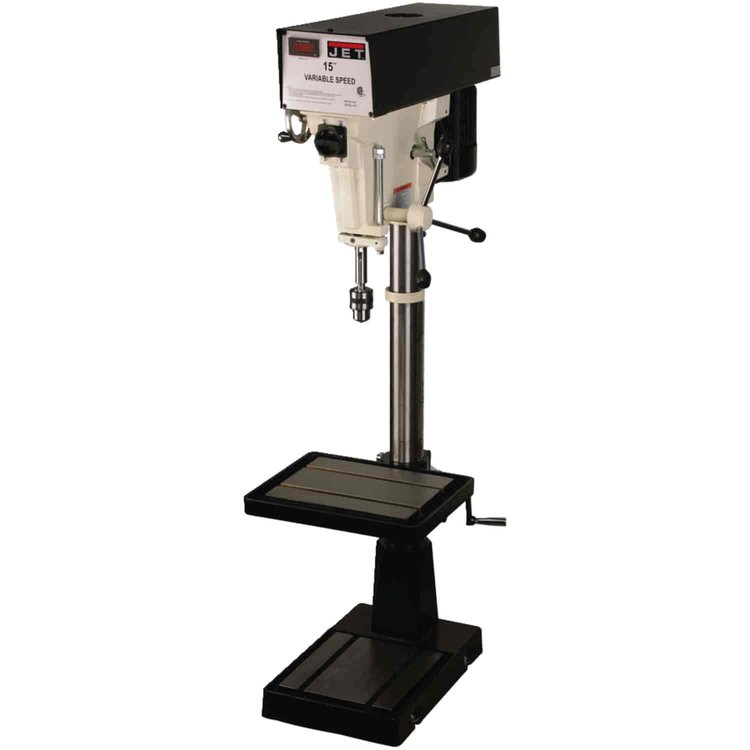

J-A5816 15 Variable Speed Floor Model Drill Press 115/230V 1Ph
InfoVehicle Info Needed
JET TOOLSPART NUMBER: 526-354550

J-A5816 15 Variable Speed Floor Model Drill Press 115/230V 1Ph

$2,91400
Truck Freight
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

    J-A5816 15 Variable Speed Floor Model Drill Press 115/230V 1Ph

  • Handwheel speed adjustment of 400 to 5,000 RPM
  • Large 2-1/4" quill for greater accuracy
  • 3" column diameter for maximum head support
  • 6" stroke for deep hole application
  • Accurate depth stop for precice hole depths
  • 1/2" drill chuck and arbor included
  • Safety collar
  • Full bearing support on quill for maximum spindle stiffness
  • These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.

Part TypeDrill Press
BrandJET TOOLS
Package Height21.5
Package Width31.5
Package Length67.5
Weight388.0 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part NumberJT9-354550
Package Qty1
Package TypeEA
