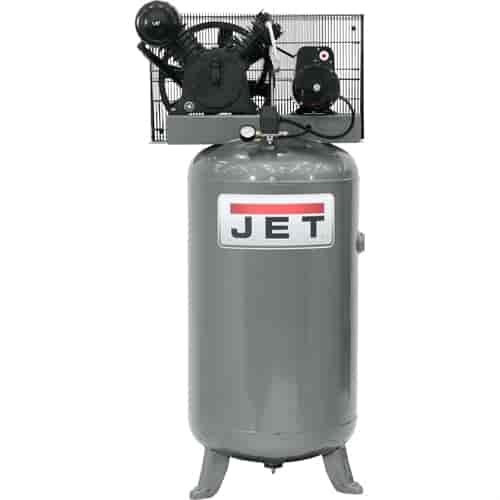

80 Gallon Vertical Air Compressor

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

5 HP, 230V, 1Ph
JCP-802

Features:
175 PSI maximum operating pressure for applications requiring higher air capacity and pressure
Two-Stage, Cast Iron Pump design delivers higher pressure and increased air delivery
ASME-certified tanks meet strict testing and inspection standards
Similar to an automotive design, JET compressors are reciprocating,
The critical components of the crankcase, crankshaft and cylinders are cast iron for reliability and durability in demanding industrial environments
The precision machined Aluminum head and valve system dissipates heat quicker for long-lasting performance
Fully enclosed metal belt guard assures safe operation
Built-in safety valve and pressure switch for safe operation
Industrial-duty motors for reliable performance
Weather-resistant power-coat finish
Open feet design for ease of drain
CSA/C US Certification
Specs:
Tank Size: 80 Gallon
Tank Configuration: Vertical
ASME Certified: Yes
Maximum Pressure: 175 PSI
Tank MAWP: 200 PSI
Displacement: 17.3 CFM
Air Delivery: 16.5 CFM @ 90 PSI
Air Delivery (Max. CFM): 13.7 CFM @ 175 PSI
Pump Design: Two Stage
Pump Material: Cast Iron
Pump RPM: 1,190
Rated Pump Life: 17,000 Hours
Duty Cycle: 80%
Motor: 5 HP, 230V, 1 Ph
Motor Amps: 22
Overall Dimensions (L x W x H): 25" x 42" x 75"
Weight: 429 Lbs.
