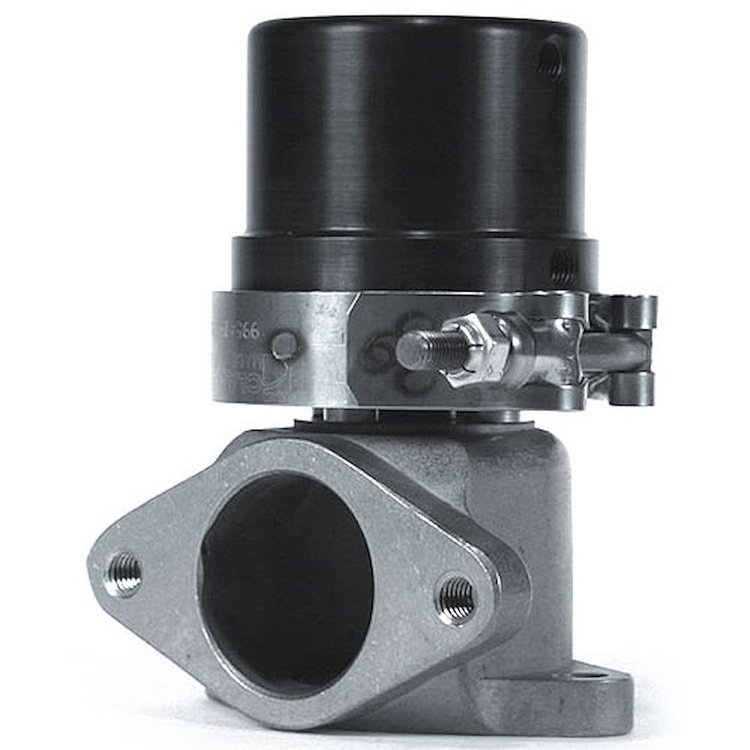

JGS400R 40mm Wastegate Assembly V-Band Actuator Retainer

Name: JGS400R 40mm Wastegate Assembly V-Band Actuator Retainer
Brand: JGS PRECISION TURBO
SKU: 548-TK188-R
Price: 278.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

JGS400R Series Wastegates

V-Band Clamp Actuator Retainer

V-Band Actuator Retainer
35-38mm type Inlet/Outlet Flanges

Includes:
Low Pressure Spring, 6-7 psi (est.)
Medium Pressure Spring, 8-10 psi (est.)
1/4' Barbed Hose Fittings
Stainless Steel Exhaust Gaskets
Four Shims

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The JGS400 Series Wastegates are a very compact unit that's excellent for low clearance applications and capable of handling 750+WHP. The legendary JGS geometry has been the cure for boost creep in many large displacement engine applications. Built to survive over 1 million full cycles at boost pressures of 40+ psi. Constructed of a 300-series stainless steel cast body housing with a T6 billet aluminum actuator housing covered in a hard anodized black finish. All JGS wastegates are engineered, tested, machined, and assembled in the USA!

Features:

Compact Size for Complex Installations
Cast 300-series Stainless Steel Body
T6 Billet Aluminum Actuator Construction
Anti-Creep Geometry
Silicone O-Ring Piston Actuator, for Long Life and Easy Service
Nickel Aluminum Bronze Valve Guide
Floating Valve Seat
1/8'' NPT Side Pressure Ports
Actuator with V-Band Clamp Retainer Allows Quick and Easy Spring Pressure Changes
