Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

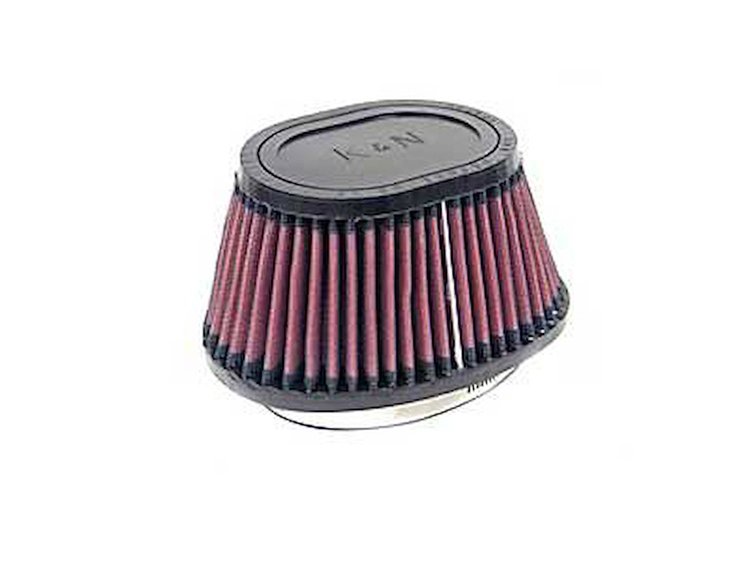

TPI Black Filter
- GM TPI Black Air Filter
- Height: 3.500"
- Base Width: 4.750"
- Base Length: 6.500"
- Top Width: 3.250"
- Top Length: 4.500"
Base Outside Length: 6-1/2' (165 mm)
Base Outside Width: 4-3/4' (121 mm)
Filter Re-Oiling Amount: 0.43 oz (13 ml)
Flange Length: 7/8' (22 mm)
Flange Type: Oval, Centered
Height: 5-5/8' (143 mm)
Top Material/Finish: Chrome
Top Outside Length: 4-1/2' (114 mm)
Top Outside Width: 3-1/4' (83 mm)
Top Style: Rubber
- Great For Use On Street Rods!
- Attaches directly to your GM throttle body
- Great for factory replacement or engine swap applications
- Will not work with Mass-Air-Systems or LT1 engines
Clamps directly onto GM TPI throttle bodies using 1990-92 stock or 1985-89 TPI that has been converted to speed density. 599-RC5000 will flow approximately 600 CFM and is intended for stock throttle bodies. 599-RC5050 is capable of flowing about 1000 CFM and is the perfect choice for aftermarket systems that need more air. Great for use on street rods where space is a problem or just to get rid of some weight by removing a bulky stock air box. Requires no modification to throttle body. Will not work with mass-air system. Will not fit LT1.Features:
Part TypeAir Filter
Product LineK&N GM TPI Throttle Body Cone Air Filter
BrandK&N
Package Height4.7
Package Width4.8
Package Length7.3
Weight1.0 PG
Part CategoryPerformance Parts
ShapeRound Tapered
QuantitySold individually
Overall Length3.5 in (88.9 mm)
MaterialRubber Base
Carb/Air Horn Dia0.875 in (22.225 mm)
Top StyleRubber
Flange TypeCentered
Filter Re-Oiling Amount0.43 oz (13 ml)
Air Filter StyleConical
Air Filter Bottom Measurement (In.)6.500 L x 4.750 W
Air Filter Top Measurement (In.)4.500 L x 3.250 W
Inlet Flange Inside Diameter4.750 L x 2.938 W
Flange Offset0 in (0 mm)
Flange Angle0 degrees
Vendor Part NumberRU-5004
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
