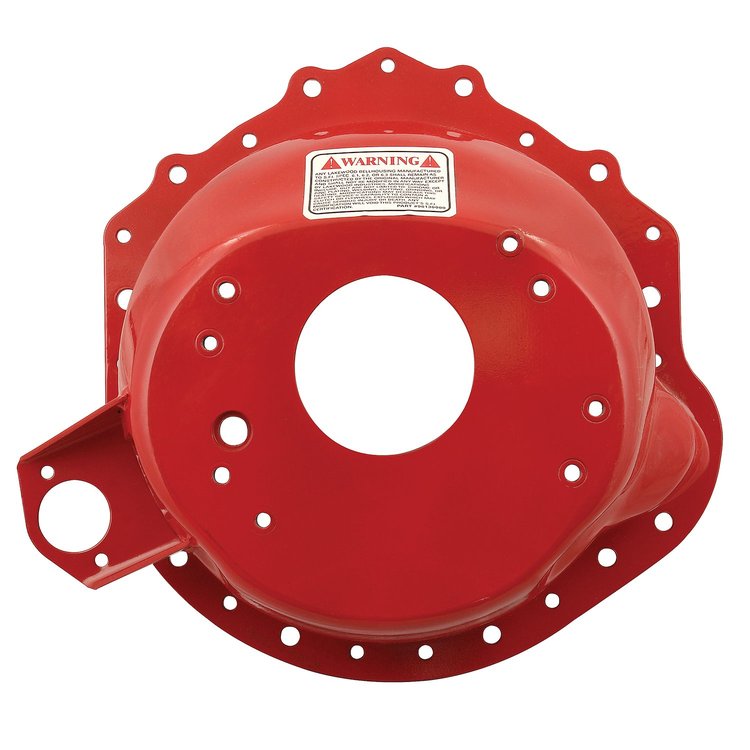

Blowproof Bellhousing 1984-1992 Camaro/Firebird

Name: Blowproof Bellhousing 1984-1992 Camaro/Firebird
Brand: LAKEWOOD
SKU: 620-15020
Price: 1075.95 USD
Availability: InStock

^$1,075⁹⁵

1 left in stock

Ships on Nov 02, 2026

Lowest Price Guarantee

Chevy

1984-1992 Camaro/Firebird
1955-2003 Chevy: 90° V6, Small Block, and Big Block
GM Muncie, Saginaw, BW T5/T10, Tremec TKO
Mechanical/Hydraulic Linkage
Designed for 1984-92 Camaro/Firebird
Fits Camaro with small block and Chevrolet 90° V6 applications with hydraulic clutch linkage bracket
Drilled for 17° canted T5 and standard GM Muncie/Borg-Warner T10 transmissions
6.45' Depth with Block Plate
3.15' x 2.37' Fork Opening
4.684' Bore Diameter

Minimize the Destructive Effects of a Clutch/Flywheel Explosion
Manufactured from premium 1/4" steel, Lakewood Bellhousings utilize hydroforming. This hydraulic forming process minimizes the thinning of the bellhousing's material while maintaining proper thickness in critical areas. Units are stress relieved after forming for even greater strength and then finished with a safety red enamel.

Tested to meet or exceed SFI Specification 6.1W when used with an approved block plate, Lakewood Steel Bellhousings are designed to contain a clutch or flywheel explosion with possible deformation or elongation of the housing. All bellhousings include the block plate and an SFI Spec 6.1W serial number.

Features

For passenger vehicles as noted
Hydroformed steel yields a uniform 1/4" thickness
Precision drilling guarantees proper bolt hole spacing
Blanchard ground mounting surfaces provide exact engine-transmission alignment
MIG welded thread inserts for transmission bolt pattern and clutch adjustment pivot ball

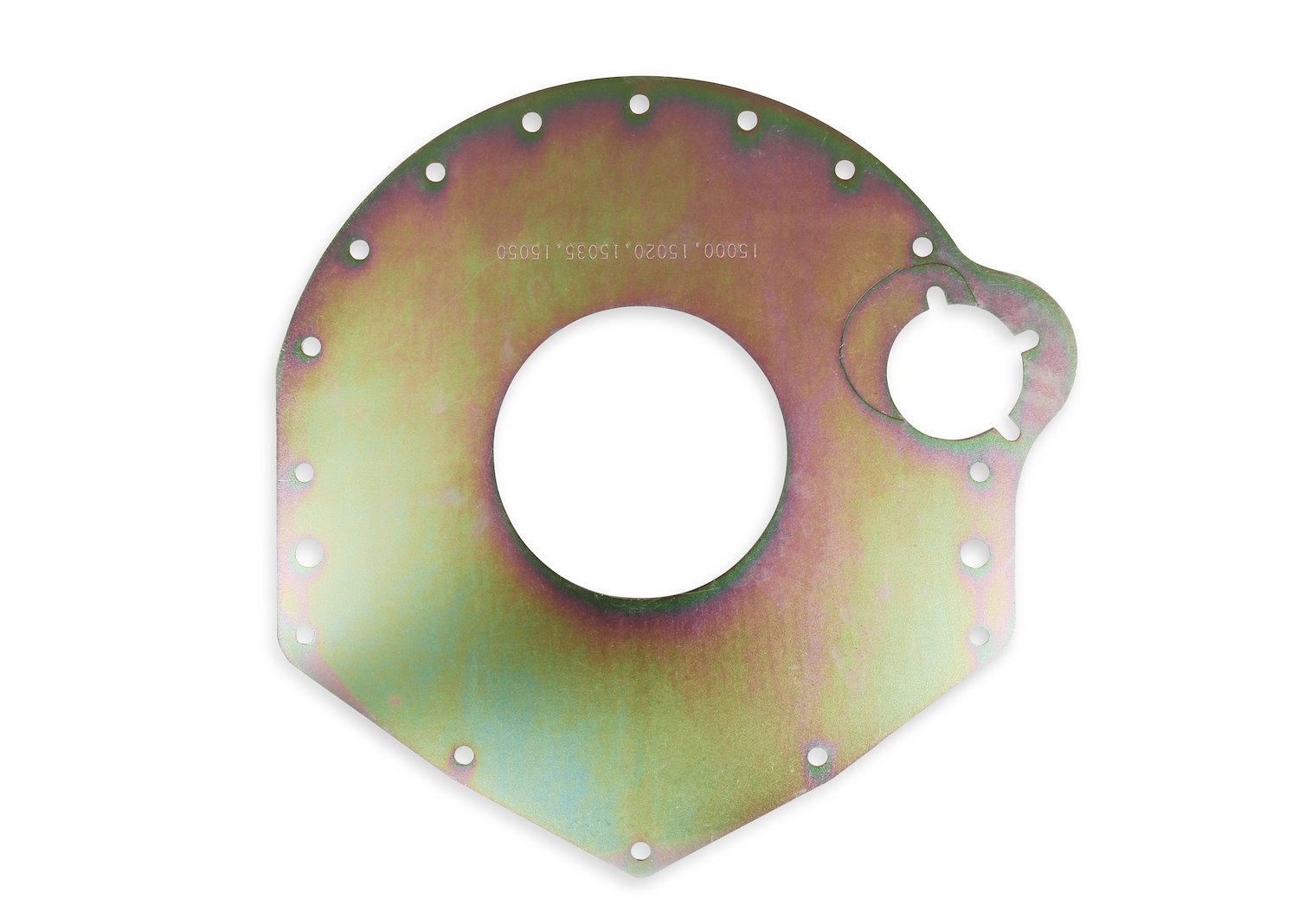

Block plate included (units predrilled for full-containment block plates)
SFI specification accepted by most major race sanctioning bodies
Heavy-duty clutch linkage brackets where required
JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
Click Here for Lakewood Bellhousing Application Guide
