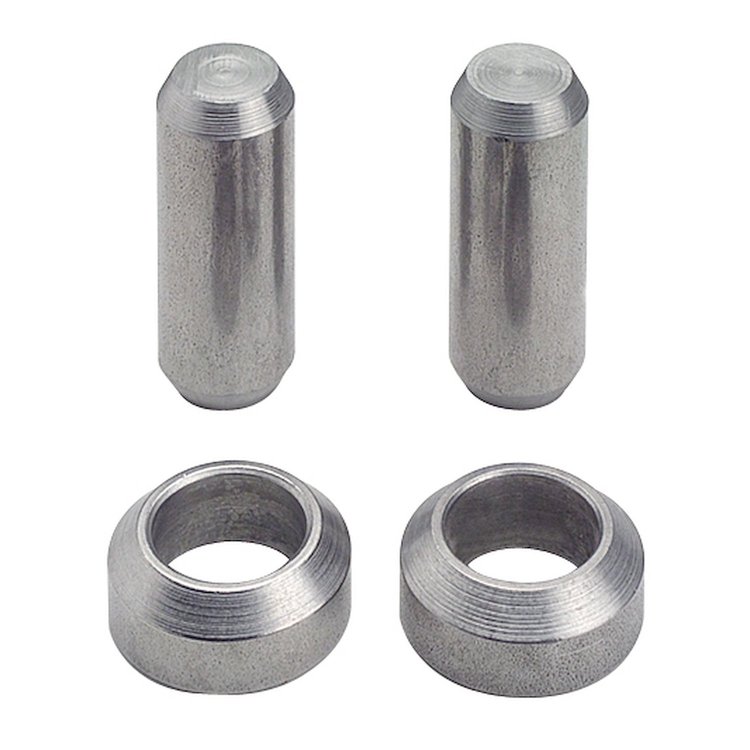

Bellhousing Locator GM

Name: Bellhousing Locator GM
Brand: LAKEWOOD
SKU: 620-15981
Price: 40.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Bellhousing Locators

GM
Diameter: 0.622"

Requirements: The bellhousing dowel pin holes must be enlarged approximately 1/16'. Then the bellhousing can be bolted in position loosely. At this point the transmission register bore is checked with a dial indicator and moved in the proper direction by tapping the bellhousing with a mallet. After the bellhousing is positioned, the chamfered washers are placed over the dowel pins and welded to the bellhousing.

Part TypeEngine Block Dowel Pin

BrandLAKEWOOD

Package Height0.2

Package Width3.1

Package Length5.2

Weight0.4 PG

Part CategoryPerformance Parts

Dowel Pin OffsetNone

QuantitySold as a pair

Part FitmentSemi Universal

Dowel Pin Diameter0.625 in (15.875 mm)

Vendor Part Number15981

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
