Vehicle Info NeededLAKEWOODPART NUMBER: 620-LK5000K

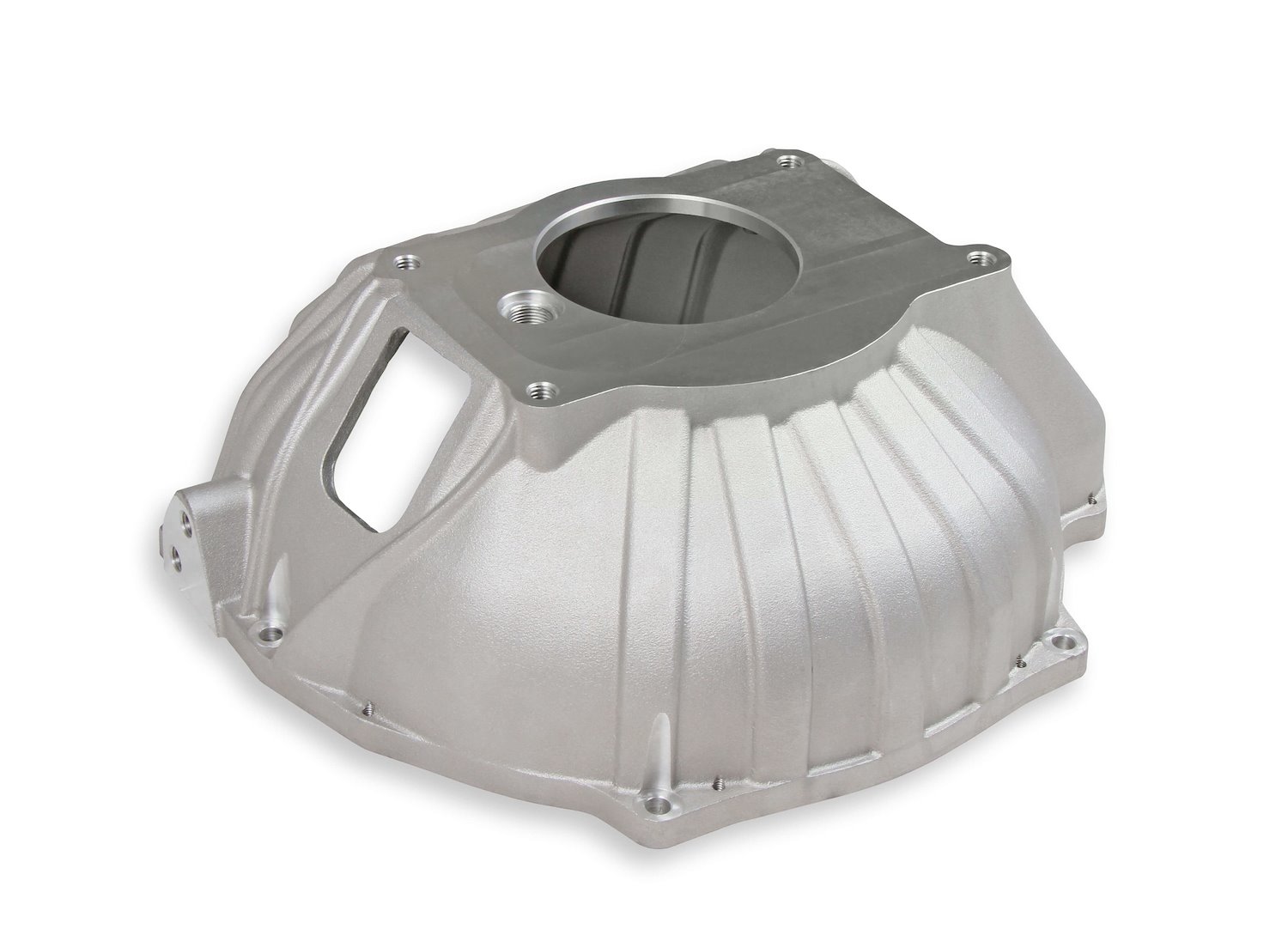

Cast-Aluminum Bellhousing Kit for GM LS Gen III/IV Engines
$47795
1 left in stock
Ships Today
Lowest Price GuaranteeGM
Cast-Aluminum Bellhousing KitFor GM LS Gen III/IV Engines Standard GM Transmission Bolt Pattern Non-SFI
Includes: Bellhousing Clutch Fork Boot Inspection Cover Grade 8 Mounting Hardware
Includes:
Features:
- Designed for use with hydraulic and mechanical fork throwout bearing linkage
- Fits 11 in. clutch disc diameter
- Fits 153 or 168-tooth flywheel
- 6.450 in. bellhousing depth
- 2.125 in. x 3.300 in. clutch fork opening
- 4.684 in. transmission bore diameter
Emissions: Legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Strong and Lightweight Bellhousings for Street Applications
Lakewood Aluminum Bellhousings offer a strong mating point between your engine application and transmission, helping to eliminate drivetrain wear and flex. These bellhousings are lightweight, provide dimensional accuracy and stability, and are the perfect upgrade for street use.
Part TypeBellhousing
Product LineLakewood Aluminum Bellhousings
BrandLAKEWOOD
Package Height9.32
Package Width18.75
Package Length19.0
Weight18.45 PG
Part CategoryPerformance Parts
Bellhousing Depth6.45 in (163.83 mm)
Clutch Fork IncludedNo
Bellhousing MaterialAluminum
Sfi-ApprovedNo
Clutch OperationHydraulic or GM Mechanical
QuantitySold individually
Part FitmentSemi Universal
Bellhousing Bore Diameter4.684 in (118.974 mm)
Bellhousing FinishNatural
Vendor Part NumberLK5000K
Package Qty1
Package TypeEA
