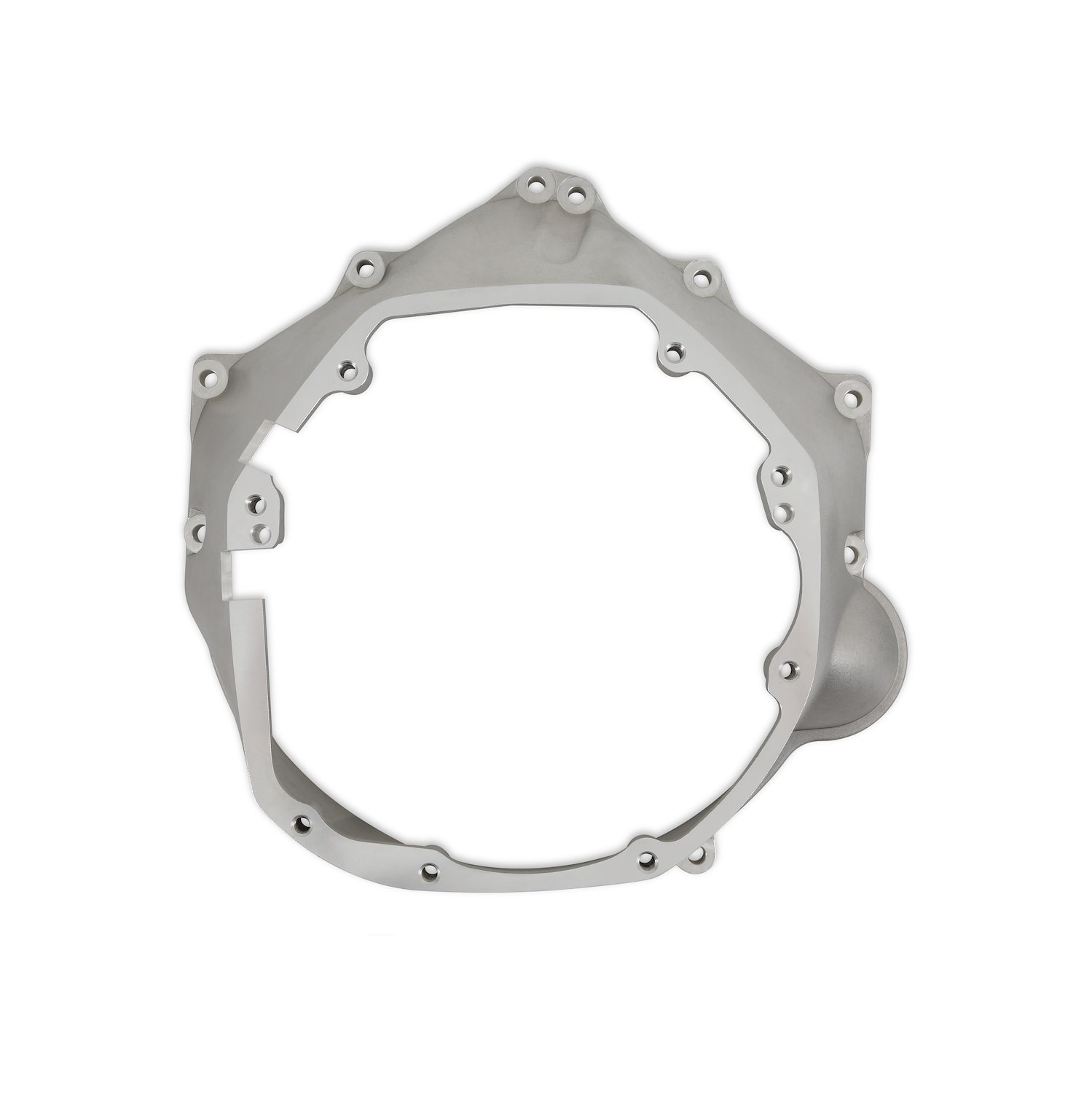

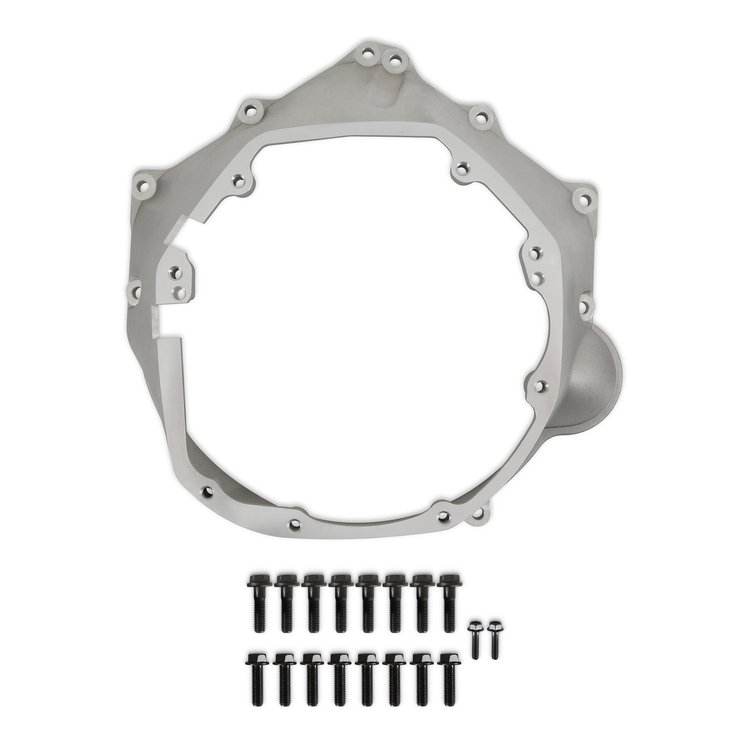

Cast-Aluminum Bellhousing Kit for GM LS, Gen V LT Engines to GM T-56/Magnum Transmissions
InfoVehicle Info Needed
LAKEWOODPART NUMBER: 620-LK5100K

Cast-Aluminum Bellhousing Kit for GM LS, Gen V LT Engines to GM T-56/Magnum Transmissions

$38795
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

GM
Cast-Aluminum Bellhousing Kit
  • GM LS, Gen V LT Engines
  • Standard GM T-56 & T-56 Magnum Transmission Bolt Pattern
  • Non-SFI
  • Includes:
    • Bellhousing
    • Grade 8 Mounting Hardware

      Lakewood LK5100K Cast-Aluminum Bellhousing Kit Features:

      • Lightweight cast aluminum bellhousing with Lakewood 50397 bellhousing bolts
      • Compatible with OE starters and flywheels
      • Lower cost non-SFI rated option

      Lakewood LK5100K Cast-Aluminum Bellhousing Kit Notes:

      • Fits all LS engines except LS4
      • Only intended for Hays 82-120, Holley 319-100, or similar aftermarket hydraulic release bearings (sold separately)
      • Compatible with factory-made stock or Holley oil pans

      • Strong and Lightweight Bellhousings for Street Applications

      Lakewood Aluminum Bellhousings offer a strong mating point between your engine application and transmission, helping to eliminate drivetrain wear and flex. These bellhousings are lightweight, provide dimensional accuracy and stability, and are the perfect upgrade for street use.

    Part TypeBellhousing
    Product LineLakewood Aluminum Bellhousings
    BrandLAKEWOOD
    Package Height9.0
    Package Width21.3
    Package Length21.3
    Weight27.15 PG
    Part CategoryPerformance Parts
    Sfi ApprovedNo
    Transmission ModelT56
    Bellhousing MaterialAluminum
    Clutch OperationHydraulic
    QuantitySold as a kit
    Part FitmentSemi Universal
    Bellhousing FinishNatural
    Vendor Part NumberLK5100K
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
