Cast-Aluminum Bellhousing Kit Small Block Mopar 318/360 and Gen III Hemi w/ Mopar 3/4 Speed or Ford Style TKX/TKO Transmission
InfoVehicle Info Needed
LAKEWOODPART NUMBER: 620-LK7000K

Cast-Aluminum Bellhousing Kit Small Block Mopar 318/360 and Gen III Hemi w/ Mopar 3/4 Speed or Ford Style TKX/TKO Transmission

$58795
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Mopar
Cast-Aluminum Bellhousing
  • Small Block Mopar 318/360 and Gen III Hemi Engines
  • Mopar 3/4 Speed & Ford Style TKX/TKO Manual Transmissions
  • Non-SFI
  • Includes:
    • Fork Boot
    • Inspection Cover
    • Fork Pivot Bracket

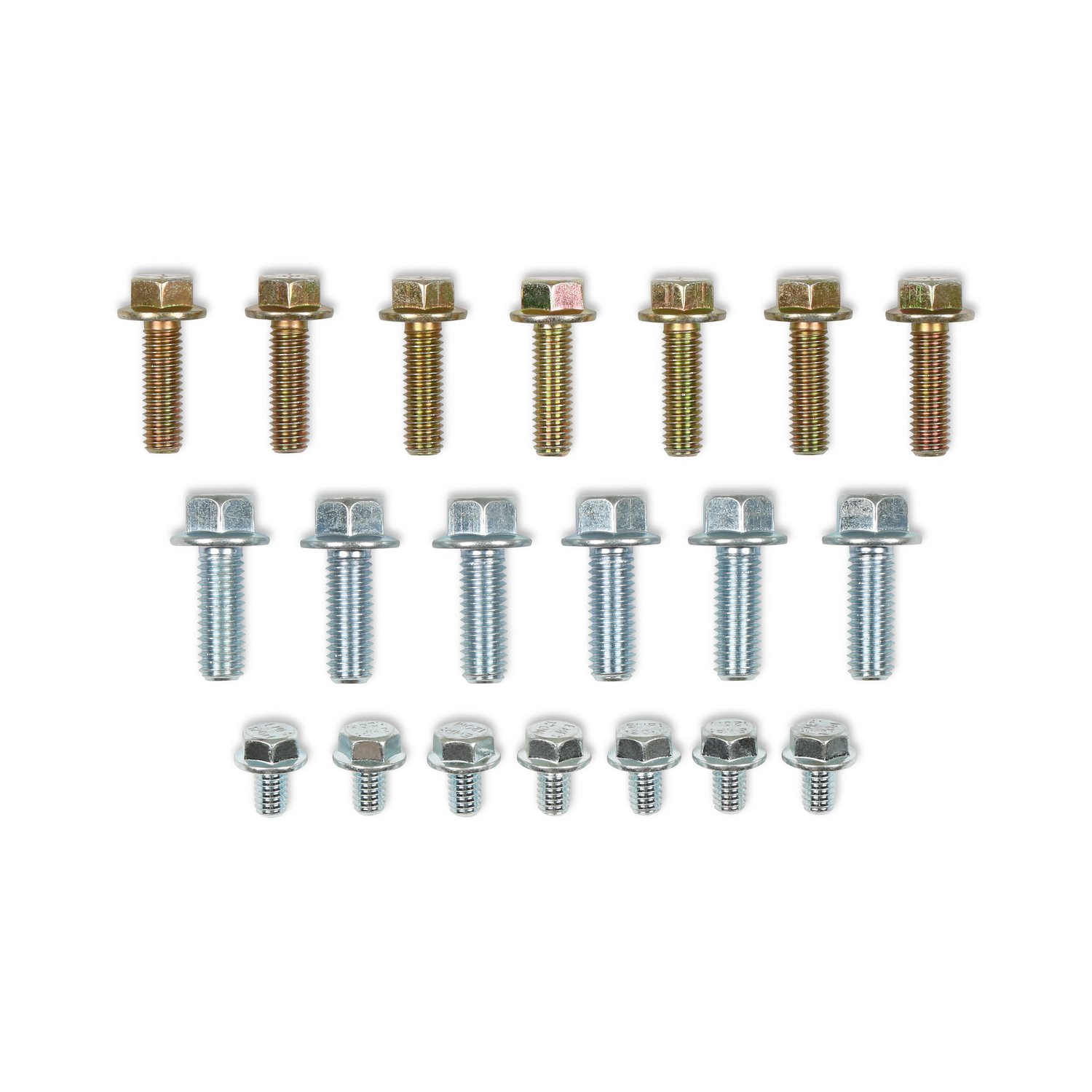

    • Bellhousing Bolt Kit

      Features:

      • Three alignment rings are included to ensure correct fitment for your application (4.345 in., 4.807 in., and 4.850 in.)
      • Designed for use with hydraulic and mechanical clutch actuation
      • Fits a 130-tooth flywheel and 10.500 in. clutch disc diameter

      Notes:

      • Left/driver-side mount starters with aligned nose
      • Requires an early truck flywheel and left-driver-side starter for Gen III Hemi applications
    • Strong and Lightweight Bellhousings for Street Applications

      Lakewood Aluminum Bellhousings offer a strong mating point between your engine application and transmission, helping to eliminate drivetrain wear and flex. These bellhousings are lightweight, provide dimensional accuracy and stability, and are the perfect upgrade for street use.

    Part TypeBellhousing
    Product LineLakewood Aluminum Bellhousings
    BrandLAKEWOOD
    Package Height9.1
    Package Width21.3
    Package Length21.4
    Weight26.76 PG
    Part CategoryPerformance Parts
    Sfi ApprovedNo
    Transmission ModelMopar A833 / Ford TKO 500/600/TKX
    Clutch Fork IncludedNo
    Bellhousing MaterialAluminum
    Clutch OperationMechanical or Hydraulic
    QuantitySold as a kit
    Part FitmentSemi Universal
    Flywheel FitmentFits 130 Tooth Flywheel
    Transmission TypeManual
    Bellhousing FinishNatural
    Package Qty1
    Package TypeEA
