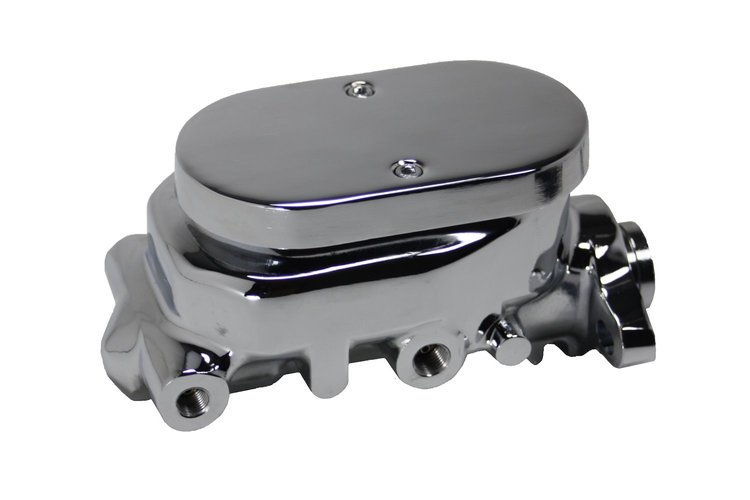

Leed Brakes MC005 Features:

New 1" bore chrome flat top power brake master cylinder with left side outlets, 9/16-18 & 1/2-20 outlets.

Leed Brakes master cylinders are all new units assembled with the highest quality machined components. All units include pushrod spacers and outlet plugs when needed to insure any easy installation in both power and manual applications.

• Fits: 1977-1982 Chevrolet Corvette
• New unit not remanufactured
• Bleeder Hoses Included: Yes
• Bleeder Screw Included: No
• Bore Type: Straight
• Brake Booster Included: No
• Brake Pressure Switch Required: No
• Dust Boot Included: No
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Master Cylinder Bore Diameter: 1.00 in.
• Master Cylinder Bore Size: 1 in
• Master Cylinder Cap Included: Yes
• Master Cylinder Finish: Chrome
• Master Cylinder Included: Yes
• Master Cylinder Material: Aluminum
• Master Cylinder Material: Aluminum
• Mounting Bracket Included: No
• Mounting Hardware Included: No
• Mounting Hole Diameter: .400 in.
• Mounting Hole Quantity: 2
• Piston Quantity: 2
• Port Quantity: 4
• Position: Front
• Primary Bore Diameter: 1.00 in.
• Primary Outlet Flare Type: Inverted
• Primary Outlet Thread Size: 9/16" - 18
• Push Rod Included: No
• Reservoir Included: Yes
• Reservoir Material: Aluminum
• Reservoir Style: Integral
• Reservoir Type: Dual
• Secondary Bore Diameter: 1.00 in.
• Secondary Outlet Flare Type: Inverted
• Secondary Outlet Thread Size: 1/2" - 20
• Sensor Included: No
