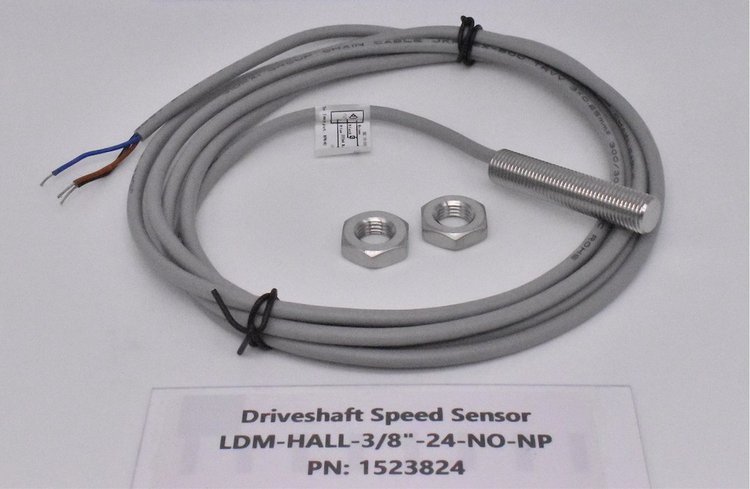

1523824 Driveshaft Speed Sensor, 3/8 in.
Lowdollar Motorsports 1523824 Features:
- Built-in LED indicator light for setup
- Triggered by ferrous material (not magnets)
- 3/8" x 24 body
- Stainless steel body
- Detection range: 0.1 mm to 1 mm
- Flush mount
- Supply voltage: 10V–30V
- Short-circuit and reverse-polarity protection built in
- Working temperature: -13°F to 176°F
- IP67 rated (waterproof)
- Normally open signal
- Max switching frequency: 8,000 Hz
Lowdoller Motorsports Driveshaft Speed Sensors For Accurate Drivetrain And Vehicle Speed Data
Lowdoller Motorsports Driveshaft Speed Sensors deliver precise rotational speed measurement essential for advanced drivetrain monitoring and performance tuning in racing and high-performance applications. Designed for durability and accuracy, these sensors provide real-time data on driveshaft RPM to support traction control, gear ratio analysis, and data logging systems. With seamless integration into aftermarket ECUs and motorsports electronics, Lowdoller Motorsports Driveshaft Speed Sensors help optimize power delivery, improve consistency, and enhance overall vehicle performance on the track.
