Made in USA
Voodoo Hydraulic Flat Tappet Camshaft Chevy Big Block 396-454 Lift: .515" /.530"
Product Discontinued
LUNATIPART NUMBER: 638-10110701

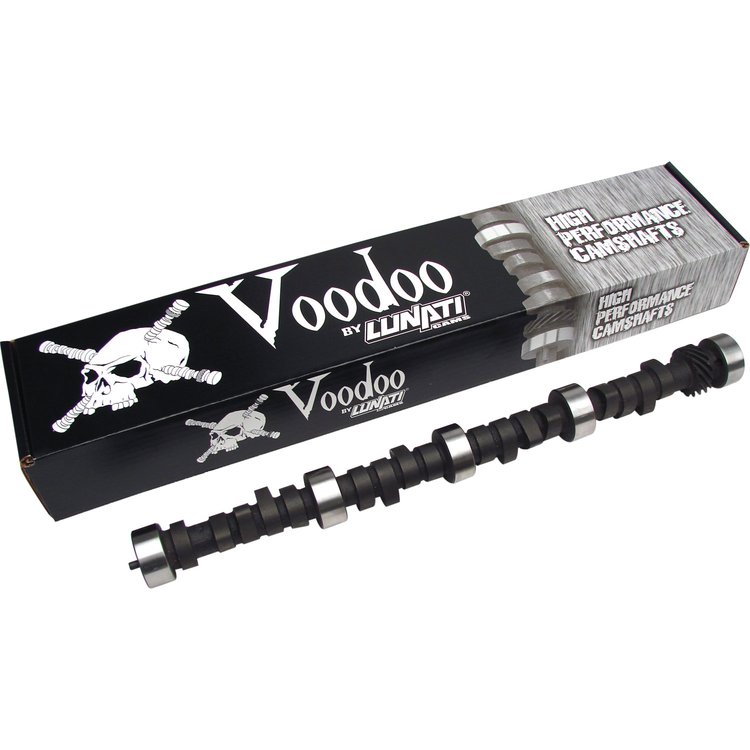

Voodoo Hydraulic Flat Tappet Camshaft Chevy Big Block 396-454 Lift: .515" /.530"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Big Block 396-454
    Voodoo Hydraulic Flat Tappet Camshaft
    Chevy Big Block 396-454
  • Lift: .515''/.530''
  • Duration: 256 Deg /262 Deg
  • LSA: 112 Deg
  • RPM Range: 1000-5500

    Best mild performance cam. Works excellent in fuel injection applications. Makes approximately 19" of vacuum at idle. Great for performance oriented marine applications and heavy duty454 Dually towing applications. Perfect street rod cam. Has slighty noticable idle, works with stock converter, A/C, power brakes and stock valve springs.

    Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

    Show More

    Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

    No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

    Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

    Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

Part TypeCamshaft
Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
BrandLUNATI
Package Height3.0
Package Width3.0
Package Length24.5
Weight10.785 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.515 int./0.530 exh.
Cam StyleHydraulic flat tappet
Camshaft Gear Attachment3-bolt
QuantitySold individually
Intake Valve Lift With Factory Rocker Arm Ratio (I0.515
Advertised Intake Duration256
Basic Operating Rpm Range1,000-5,500
Intake Duration At 050 Inch Lift213
Exhaust Duration At 050 Inch Lift219
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112/108
Advertised Exhaust Duration262
Advertised Duration256 int./262 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.53
Duration At 050 Inch Lift213 int./219 exh.
Valve Springs RequiredNo
Vendor Part Number10110701LUN
Package Qty1
Package TypeEA
