Made in USA

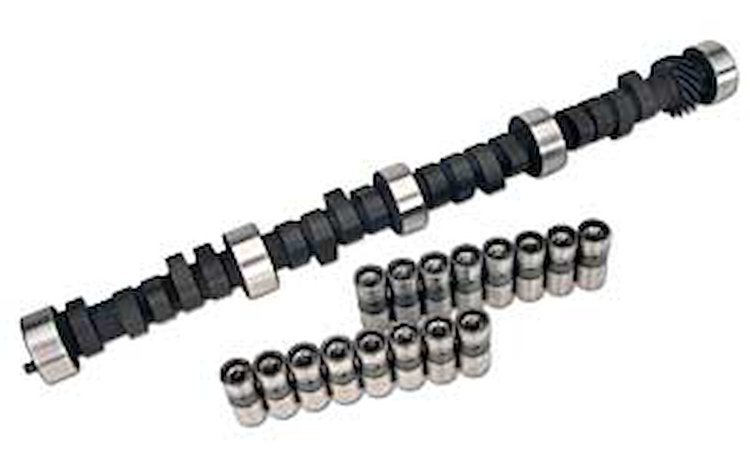

Voodoo Hydraulic Flat Tappet Camshaft Chevy Big Block 396-454 Lift: .530" /.542"
Product Discontinued
LUNATIPART NUMBER: 638-10110702LK

Voodoo Hydraulic Flat Tappet Camshaft Chevy Big Block 396-454 Lift: .530" /.542"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Big Block 396-454
    Voodoo Hydraulic Flat Tappet Camshaft
    Chevy Big Block 396-454
  • Lift: .530''/.542''
  • Duration: 262 Deg /268 Deg
  • LSA: 112 Deg
  • RPM Range: 1400-5800

    Mid-level performance street cam with excellent drivability. Great replacment for muscle car type cam with automatic transmissions. Works well with stock type exhaust manifolds and dual plane intake with mild 4 bbl carb. Great 4x4 and performance marine cam where dry exhaust is used. Improved valve springs and roller rockers recommended.

    Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

    Show More

    Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

    No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

    Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

    Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

Part TypeCamshaft Kit
Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
BrandLUNATI
Package Height3.2
Package Width5.5
Package Length25.3
Weight15.0 PG
Part CategoryPerformance Parts
Cam StyleHydraulic flat tappet
Locks IncludedNo
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.53
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,400-5,700
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112
Lifter StyleHydraulic flat tappet
Advertised Duration262 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.542
Valve Springs IncludedNo
Valve Lift With Factory Rocker Arm Ratio0.530 int./0.542 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Advertised Intake Duration262
Intake Duration At 050 Inch Lift219
Exhaust Duration At 050 Inch Lift227
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration268
Part FitmentSemi Universal
Duration At 050 Inch Lift219 int./227 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number10110702LKLUN
Package Qty1
Package TypeEA
