Made in USA
Voodoo Hydraulic Flat Tappet Camshaft Complete Kit Chevy Small Block 262-400 Lift: .454" /.468"
Product Discontinued
LUNATIPART NUMBER: 638-10120701K

Voodoo Hydraulic Flat Tappet Camshaft Complete Kit Chevy Small Block 262-400 Lift: .454" /.468"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Small Block 262-400
    Voodoo Hydraulic Flat Tappet Camshaft Complete Kit
    Chevy Small Block 262-400
  • Lift: .454''/.468''
  • Duration: 256 Deg /262 Deg
  • LSA: 112 Deg
  • RPM Range: 1000-5500

    Best mild performance cam. Works excellent in TPI fuel injection applications. Makes approximately 19" of vacuum at idle. Great for performance oriented marine and heavy towing applications. Perfect street rod cam. Has slightly noticeable idle, works with stock converter, A/C, power brakes and stock valve springs.

    Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

    Show More

    Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

    No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

    Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

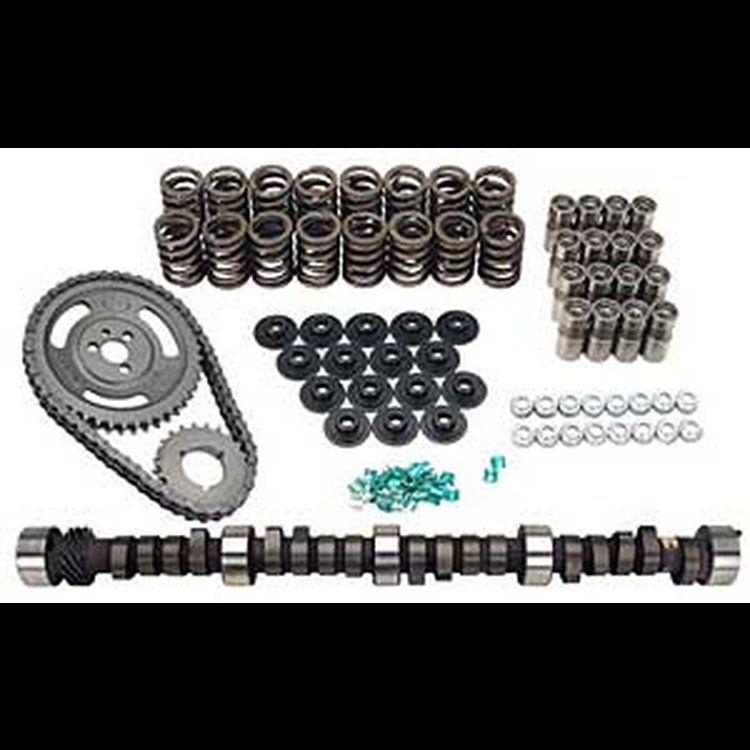

    Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

Part TypeCamshaft Kit
Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
BrandLUNATI
Package Height5.3
Package Width10.3
Package Length25.3
Weight20.65 PG
Part CategoryPerformance Parts
Cam StyleHydraulic flat tappet
Locks IncludedYes
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.454
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,000-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112/108
Lifter StyleHydraulic flat tappet
Advertised Duration256 int./262 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.468
Valve Springs IncludedYes
Valve Lift With Factory Rocker Arm Ratio0.454 int./0.468 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Advertised Intake Duration256
Outside Diameter Of Outer Spring1.266 in (32.2 mm)
Intake Duration At 050 Inch Lift213
Exhaust Duration At 050 Inch Lift219
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration262
Part FitmentSemi Universal
Duration At 050 Inch Lift213 int./219 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number10120701KLUN
Package Qty1
Package TypeEA
