Product Discontinued
LUNATIPART NUMBER: 638-10120705LK

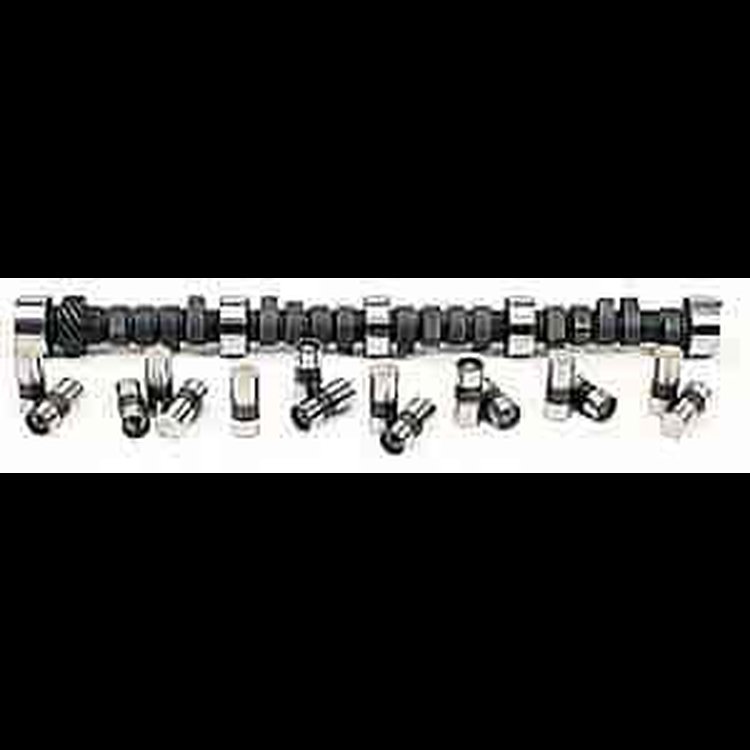

Voodoo Hydraulic Flat Tappet Camshaft and Lifter Kit Chevy Small Block 262-400 Lift: .525" /.546"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Small Block 262-400
- Voodoo Hydraulic Flat Tappet Camshaft and Lifter Kit
- Lift: .525''/.546''
- Duration: 284 Deg /292 Deg
- LSA: 110 Deg
- RPM Range: 2500-6600
This is possibly the most powerful hydraulic cam ever designed! Designed for VERY HOT street / bracket race applications, this cam requires a minimum of 10.5:1 compression, 4.11 gearing, and 3500 RPM stall converter. Works with up to 250HP of nitrous, and pulls VERY HARD past 6500 RPM when coupled with the correct parts. The baddest of the witches brew, this cam is destined to rule the street. If you're scared...buy a different cam!
Chevy Small Block 262-400
Part TypeCamshaft Kit
BrandLUNATI
Package Height3.1
Package Width6.0
Package Length25.3
Weight12.75 PG
Part CategoryPerformance Parts
Cam StyleHydraulic flat tappet
Locks IncludedNo
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Lifter StyleHydraulic flat tappet
Advertised Duration284 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.546
Valve Springs IncludedNo
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.546 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Advertised Intake Duration284
Intake Duration At 050 Inch Lift241
Exhaust Duration At 050 Inch Lift249
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration292
Duration At 050 Inch Lift241 int./249 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number10120705LKLUN
Package Qty1
Package TypeEA
