Made in USA

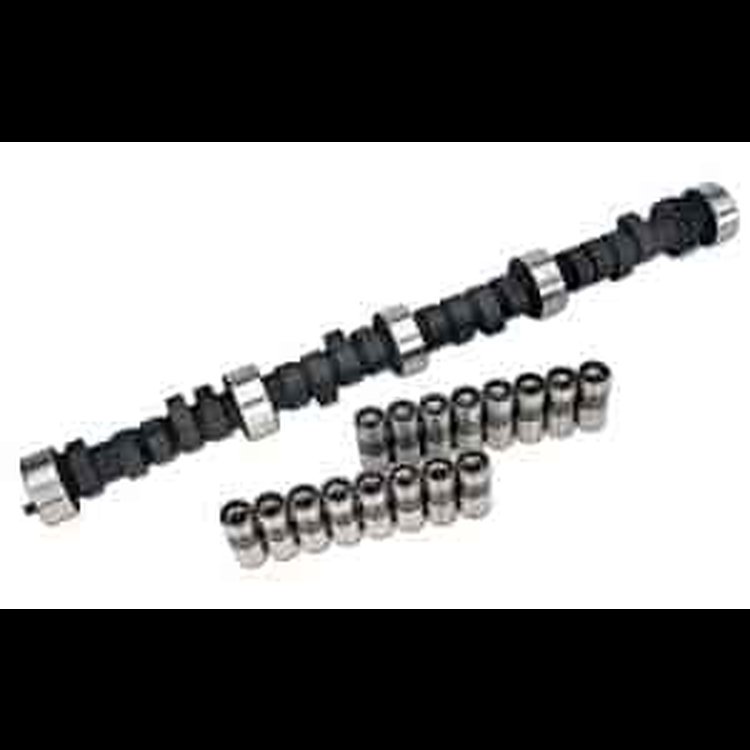

Voodoo Hydraulic Flat Tappet Camshaft and Lifter Kit Ford Small Block 289-351W Lift: .499" /.522"
Product Discontinued
LUNATIPART NUMBER: 638-10350702LK

Voodoo Hydraulic Flat Tappet Camshaft and Lifter Kit Ford Small Block 289-351W Lift: .499" /.522"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Small Block 289-351W
  • Firing Order 1-3-7-2-6-5-4-8
    • Voodoo Hydraulic Flat Tappet Camshaft and Lifter Kit
      Ford Small Block 289-351W
    • Lift: .499''/.522''
    • Duration: 262 Deg /268 Deg
    • LSA: 112 Deg
    • RPM Range: 1400-5800

      Mid-level performance street cam with excellent drivability. Exceptional replacement for ''muscle car type cams'' with automatic transmissions. Works well with stock type exhaust manifolds and dual plane intake with mild 4 bbl carb. This is an AWESOME 4x4 and Performance Marine cam where ''DRY'' exhaust is used. Improved valve springs and roller rockers are recommended.

      Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

      Show More

      Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

      No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

      Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

      Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

      Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

      JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    Part TypeCamshaft Kit
    Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
    BrandLUNATI
    Package Height3.0
    Package Width5.5
    Package Length25.5
    Weight14.315 PG
    Part CategoryPerformance Parts
    Cam StyleHydraulic flat tappet
    Locks IncludedNo
    Retainers IncludedNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.499
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range1,400-5,700
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Computer-Controlled CompatibleNo
    Lobe Separation (Deg)112
    Lifter StyleHydraulic flat tappet
    Advertised Duration262 int./268 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.522
    Valve Springs IncludedNo
    Valve Lift With Factory Rocker Arm Ratio0.499 int./0.522 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Advertised Intake Duration262
    Intake Duration At 050 Inch Lift219
    Exhaust Duration At 050 Inch Lift227
    Timing Chain And Gears IncludedNo
    Advertised Exhaust Duration268
    Part FitmentSemi Universal
    Duration At 050 Inch Lift219 int./227 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part Number10350702LKLUN
    Package Qty1
    Package TypeEA
