Made in USA
Voodoo Hydraulic Flat Tappet Camshaft Complete Kit Ford Small Block 289-351W Lift: .499" /.522"
Product Discontinued
LUNATIPART NUMBER: 638-10350703K

Voodoo Hydraulic Flat Tappet Camshaft Complete Kit Ford Small Block 289-351W Lift: .499" /.522"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Small Block 289-351W
  • Firing Order 1-3-7-2-6-5-4-8
    • Voodoo Hydraulic Flat Tappet Camshaft Complete Kit
      Ford Small Block 289-351W
    • Lift: .522''/.538''
    • Duration: 268 Deg /276 Deg
    • LSA: 110 Deg
    • RPM Range: 1800-6200

      The most awesome ''268'' cam ever produced! Out-powers all others! This high performance street cam likes 2400 RPM stall, 700 cfm carb, dual plane intake and headers. Makes un-equaled power to 6200 RPM with proper valve springs. If you're looking for a very strong cam with great street manners for you ''crate motor'', this is it! EFI motors need custom chips / tuning.

      Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

      Show More

      Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

      No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

      Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

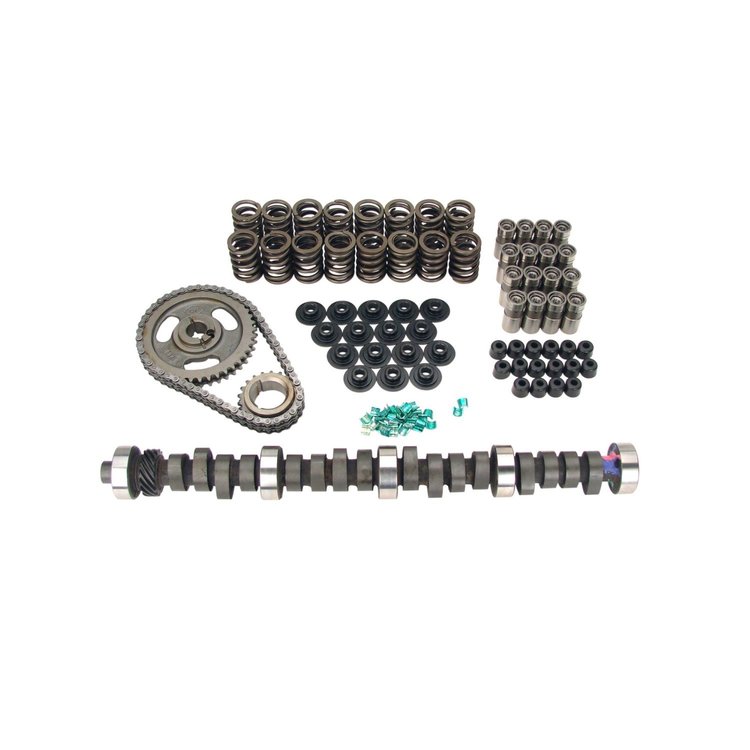

      Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

      Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

      JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    Part TypeCamshaft Kit
    Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
    BrandLUNATI
    Package Height5.2
    Package Width10.3
    Package Length25.4
    Weight24.42 PG
    Part CategoryPerformance Parts
    Cam StyleHydraulic flat tappet
    Locks IncludedYes
    Retainers IncludedYes
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.522
    Assembly Lubricant IncludedYes
    Basic Operating Rpm Range1,800-6,200
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Computer-Controlled CompatibleNo
    Lobe Separation (Deg)110
    Lifter StyleHydraulic flat tappet
    Advertised Duration268 int./276 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.538
    Valve Springs IncludedYes
    Valve Lift With Factory Rocker Arm Ratio0.522 int./0.538 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Advertised Intake Duration268
    Outside Diameter Of Outer Spring1.45 in (36.8 mm)
    Intake Duration At 050 Inch Lift227
    Exhaust Duration At 050 Inch Lift233
    Timing Chain StyleDouble roller
    Timing Chain And Gears IncludedYes
    Advertised Exhaust Duration276
    Duration At 050 Inch Lift227 int./233 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part Number10350703K
    Package Qty1
    Package TypeEA
