Made in USA
Voodoo Hydraulic Flat Tappet Camshaft Ford Small Block 289-351W Lift: .538" /.560"
Product Discontinued
LUNATIPART NUMBER: 638-10350704

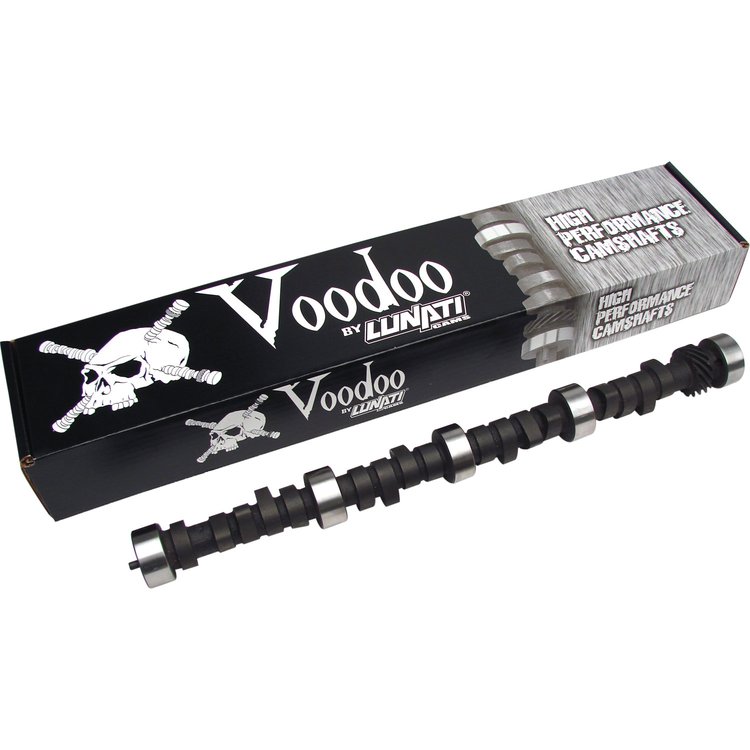

Voodoo Hydraulic Flat Tappet Camshaft Ford Small Block 289-351W Lift: .538" /.560"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Small Block 289-351W
  • Firing Order 1-3-7-2-6-5-4-8
  • Voodoo Hydraulic Flat Tappet Camshaft
    Ford Small Block 289-351W
  • Lift: .538''/.560''
  • Duration: 276 Deg /284 Deg
  • LSA: 112 Deg
  • RPM Range: 2200-6400

    LUNATI/HOLLEY 10350704 Features:

    Lunati's Voodoo series of camshafts delivers more area under the curve than any other series of camshafts. Voodoo cams provide more throttle response, quicker acceleration, more vacuum and more efficiency. The Voodoo Series works excellently for a wide variety of performance applications.
      • Unless you're a witch doctor, choosing the correct camshaft can be a nightmare. Voodoo by Lunati is the answer! The gurus at Lunati have taken camshaft design to another dimension with profiles never before used on flat tappet cams. Only the best profiles are featured in this line, making your cam selection simple.

        Show More

        Lunati Voodoo incorporates thirty years of cam design experience with more recent developments in profiles, geometry, and tolerances to deliver the most aggressive ramp profiles ever utilized in hydraulic flat tappet cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These are the best power-producing hydraulic flat tappet cams available today!

        No other hydraulic flat tappet cam delivers more "area under the curve" than Lunati's Voodoo Series. This means more throttle response, quicker acceleration, more vacuum, better efficiency, and maximum horsepower and torque! Voodoo Cams cover more applications than any other series currently offered: normally aspirated, fuel injected, RV/towing, marine, 4x4, off-road, street rod, muscle car, touring, and fuel economy.

        Voodoo designs are so advanced that Lunati camshafts could now be considered years ahead of the competition! Don't settle for average camshaft performance or rely on your own abilities to choose a cam. Take your ride to the next dimension with Voodoo.

        Camshaft & Lifter Kits include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

        Complete Kits include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

        JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

      Part TypeCamshaft
      Product LineLunati Voodoo Hydraulic Flat Tappet Camshafts
      BrandLUNATI
      Package Height3.0
      Package Width3.0
      Package Length24.5
      Weight10.0 PG
      Part CategoryPerformance Parts
      Valve Lift With Factory Rocker Arm Ratio0.538 int./0.560 exh.
      Cam StyleHydraulic flat tappet
      Camshaft Gear Attachment1-bolt
      QuantitySold individually
      Intake Valve Lift With Factory Rocker Arm Ratio (I0.538
      Advertised Intake Duration276
      Basic Operating Rpm Range2,200-6,400
      Intake Duration At 050 Inch Lift233
      Exhaust Duration At 050 Inch Lift241
      Computer-Controlled CompatibleNo
      Lobe Separation (Deg)110/106
      Advertised Exhaust Duration284
      Advertised Duration276 int./284 exh.
      Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
      Duration At 050 Inch Lift233 int./241 exh.
      Valve Springs RequiredYes
      Vendor Part Number10350704LUN
      Package Qty1
      Package TypeEA
