Product Discontinued
LUNATIPART NUMBER: 638-20110711

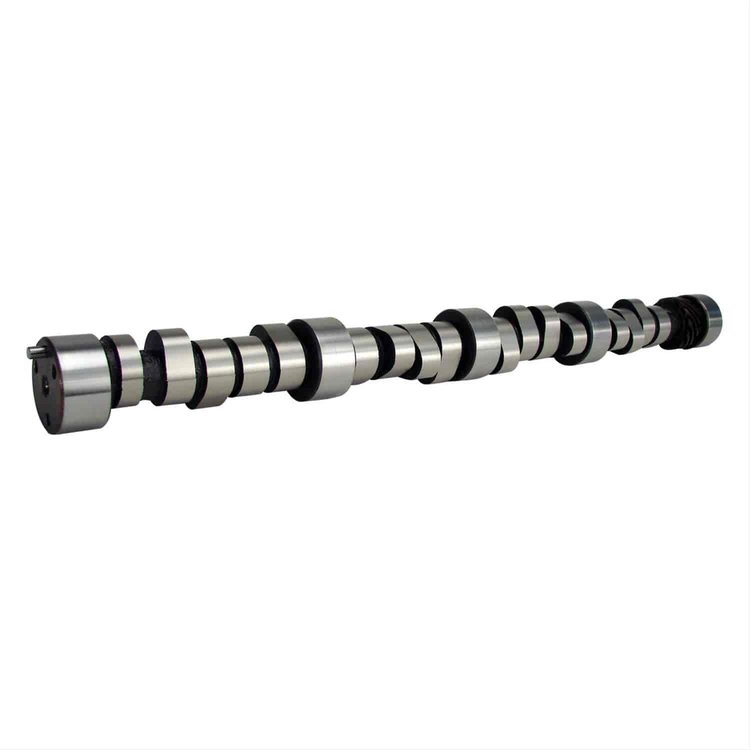

Voodoo Retro-Fit Hydraulic Roller Camshaft for 1965-96 Big Block Chevy 396-454
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Chevy
- Voodoo Retro-Fit Hydraulic Roller Camshaft
- 1965-96 Big Block Chevy 396-454
- Lift: .575''/.575''
- Duration: 272°/280°
- Lobe Separation Angle: 112/106°
- RPM Range: 1800-5500
Retro-Fit Hydraulic Roller Cam. Great mid-range torque and power. Likes a 2000 RPM stall converter and works great in towing applications with lower gearing. Largest for inboard/outboard performance marine use.; Advertised Duration (Int/Exh): 272/280; Duration @ .050 (Int/Exh): 221/229; Gross Valve Lift (Int/Exh): .575/.575; LSA/ICL: 112/106; Valve Lash (Int/Exh): Hyd/Hyd; RPM Range: 1800-5500; Includes: Cam Only
Part TypeCamshaft
BrandLUNATI
Package Height2.9
Package Width3.0
Package Length24.5
Weight11.0 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.575 int./0.575 exh.
Cam StyleHydraulic roller tappet
QuantitySold individually
Intake Valve Lift With Factory Rocker Arm Ratio (I0.575
Advertised Intake Duration272
Basic Operating Rpm Range1,800-5,500
Intake Duration At 050 Inch Lift221
Exhaust Duration At 050 Inch Lift229
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112
Advertised Exhaust Duration280
Advertised Duration272 int./280 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.575
Duration At 050 Inch Lift221 int./229 exh.
Valve Springs RequiredNo
Vendor Part Number20110711LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
