Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy

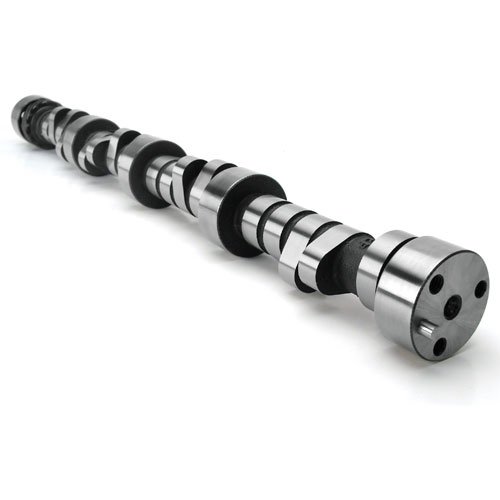

Voodoo Retrofit Hydraulic Roller CamshaftSmall Block Chevy Lift: .515''/.530'' Duration: 270°/278° Lobe Separation Angle: 112° RPM Range: 1800-5800
LUNATI/HOLLEY 20120711 Features:
Lunati's Voodoo series of camshafts delivers more area under the curve than any other series of camshafts. Voodoo cams provide more throttle response, quicker acceleration, more vacuum and more efficiency. The Voodoo Series works excellently for a wide variety of performance applications.Part TypeCamshaft
BrandLUNATI
Package Height2.8
Package Width3.1
Package Length24.2
Weight9.6 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.515 int./0.530 exh.
Cam StyleHydraulic roller tappet
QuantitySold individually
Grind NumberVDSC-270
Intake Valve Lift With Factory Rocker Arm Ratio (I0.515
Advertised Intake Duration270
Basic Operating Rpm Range1,600-5,600
Intake Duration At 050 Inch Lift219
Exhaust Duration At 050 Inch Lift227
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112
Advertised Exhaust Duration278
Advertised Duration270 int./278 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.53
Duration At 050 Inch Lift219 int./227 exh.
Valve Springs RequiredYes
Vendor Part Number20120711LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
