Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy

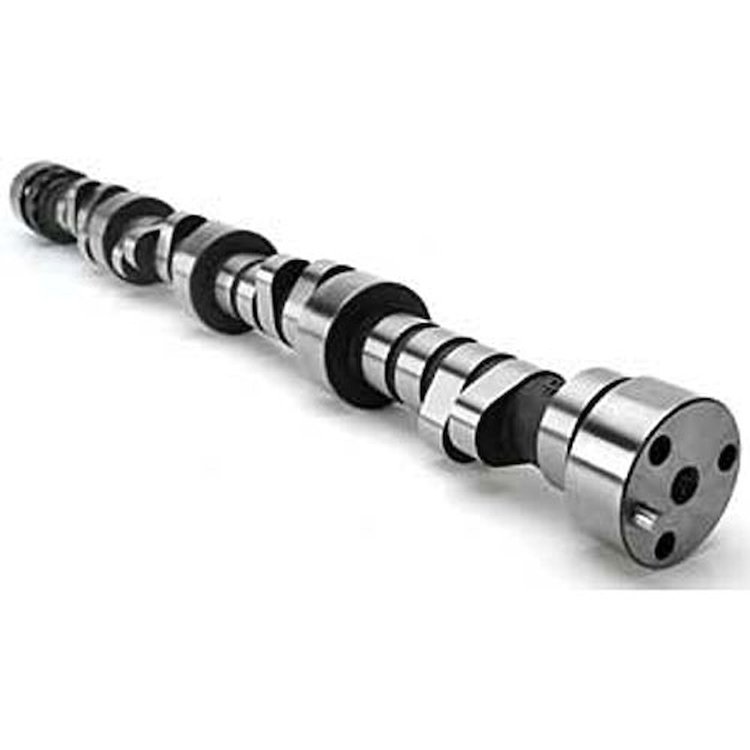

Voodoo Retrofit Hydraulic Roller CamshaftSmall Block Chevy Lift: .560''/.565'' Duration: 294°/302° Lobe Separation Angle: 110° RPM Range: 2800-6400
LUNATI/HOLLEY 20120713 Features:
Lunati's Voodoo series of camshafts delivers more area under the curve than any other series of camshafts. Voodoo cams provide more throttle response, quicker acceleration, more vacuum and more efficiency. The Voodoo Series works excellently for a wide variety of performance applications.Part TypeCamshaft
BrandLUNATI
Package Height2.8
Package Width3.1
Package Length24.4
Weight8.75 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.565 exh.
Cam StyleHydraulic roller tappet
QuantitySold individually
Grind NumberVDSC-294
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Advertised Intake Duration294
Basic Operating Rpm Range2,800-6,400
Intake Duration At 050 Inch Lift243
Exhaust Duration At 050 Inch Lift251
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Advertised Exhaust Duration302
Advertised Duration294 int./302 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.565
Duration At 050 Inch Lift243 int./251 exh.
Valve Springs RequiredYes
Vendor Part Number20120713LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
