Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford

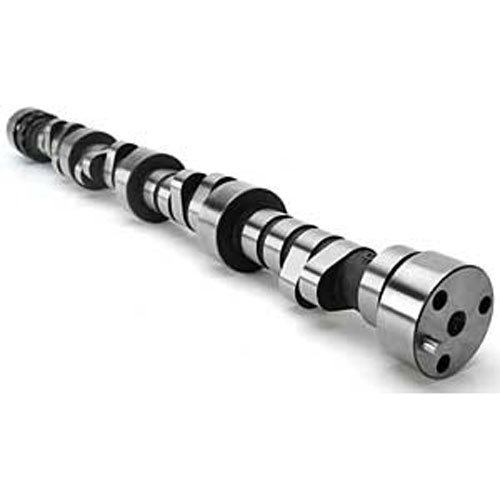

Voodoo Hydraulic Roller CamshaftFord 302, 351W Lift: .549''/.565'' Duration: 272°/280° Lobe Separation Angle: 112° RPM Range: 2200-6200
LUNATI/HOLLEY 20350711 Features:
Lunati's Voodoo series of camshafts delivers more area under the curve than any other series of camshafts. Voodoo cams provide more throttle response, quicker acceleration, more vacuum and more efficiency. The Voodoo Series works excellently for a wide variety of performance applications.More Area Under the Curve Than Any Other Camshaft Series
Lunati Voodoo Hydraulic Roller Camshafts deliver more area under the curve than comparable camshafts. This means improved throttle response, quicker acceleration, increased vacuum, and better efficiency. These factors combine with maximum horsepower and torque to make Voodoo Camshafts the perfect choice for a wide range of high-performance applications.
Part TypeCamshaft
Product LineLunati Voodoo Hydraulic Roller Camshafts
BrandLUNATI
Package Height2.9
Package Width5.0
Package Length24.4
Weight9.85 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.549 int./0.565 exh.
Cam StyleHydraulic roller tappet
QuantitySold individually
Grind NumberVDSF-272
Intake Valve Lift With Factory Rocker Arm Ratio (I0.549
Advertised Intake Duration272
Basic Operating Rpm Range2,000-6,200
Intake Duration At 050 Inch Lift221
Exhaust Duration At 050 Inch Lift229
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112
Advertised Exhaust Duration280
Advertised Duration272 int./280 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.565
Duration At 050 Inch Lift221 int./229 exh.
Valve Springs RequiredYes
Vendor Part Number20350711LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
