Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM LS Engines

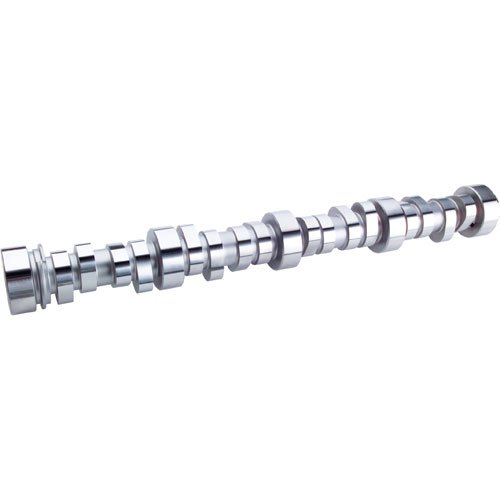

Voodoo Hydraulic Roller CamshaftGM LS Gen III/IV Lift: .567''/.567'' Duration: 272°/278° Lobe Separation Angle: 113° RPM Range: 2000-6600
LUNATI/HOLLEY 20540711 Features:
Lunati's Voodoo series of camshafts delivers more area under the curve than any other series of camshafts. Voodoo cams provide more throttle response, quicker acceleration, more vacuum and more efficiency. The Voodoo Series works excellently for a wide variety of performance applications.More Area Under the Curve Than Any Other Camshaft Series
Lunati Voodoo Hydraulic Roller Camshafts deliver more area under the curve than comparable camshafts. This means improved throttle response, quicker acceleration, increased vacuum, and better efficiency. These factors combine with maximum horsepower and torque to make Voodoo Camshafts the perfect choice for a wide range of high-performance applications.
Part TypeCamshaft
Product LineLunati Voodoo Hydraulic Roller Camshafts
BrandLUNATI
Package Height2.8
Package Width15.3
Package Length24.3
Weight10.05 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.567 int./0.567 exh.
Cam StyleHydraulic roller tappet
Camshaft Gear Attachment3-bolt
QuantitySold individually
Intake Valve Lift With Factory Rocker Arm Ratio (I0.567
Advertised Intake Duration272
Basic Operating Rpm Range2,000-6,600
Intake Duration At 050 Inch Lift222
Exhaust Duration At 050 Inch Lift228
Computer-Controlled CompatibleNo
Lobe Separation (Deg)113
Advertised Exhaust Duration278
Advertised Duration272 int./278 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.567
Duration At 050 Inch Lift222 int./228 exh.
Valve Springs RequiredYes
Vendor Part Number20540711LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
