Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

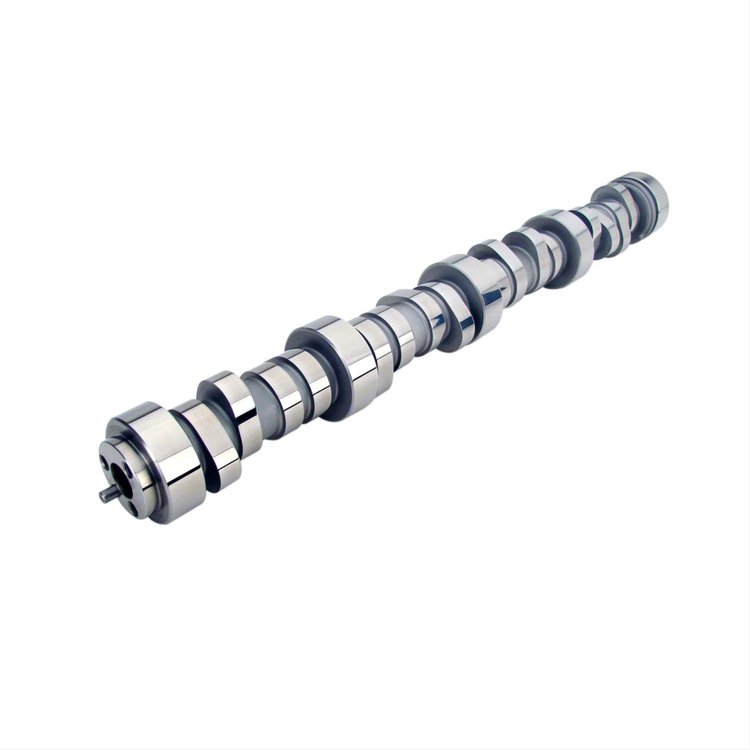

CAM GM LS V8 V270HR12
LUNATI/HOLLEY 20540732 Features:
Lunati's Voodoo series of camshafts delivers more area under the curve than any other series of camshafts. Voodoo cams provide more throttle response, quicker acceleration, more vacuum and more efficiency. We developed this line specifically for LS Series engines that have LS3/L92 rectangle port cylinder heads.Part TypeCamshaft
BrandLUNATI
Package Height3.0
Package Width3.0
Package Length24.5
Weight10.5 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.625 int./0.651 exh.
Cam StyleHydraulic roller tappet
Camshaft Gear Attachment3-bolt
QuantitySold individually
Intake Valve Lift With Factory Rocker Arm Ratio (I0.625
Advertised Intake Duration270
Basic Operating Rpm Range1,800-6,400
Intake Duration At 050 Inch Lift219
Exhaust Duration At 050 Inch Lift231
Computer-Controlled CompatibleYes
Lobe Separation (Deg)112/108
Advertised Exhaust Duration282
Advertised Duration270 int./282 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.651
Duration At 050 Inch Lift219 int./231 exh.
Valve Springs RequiredYes
Vendor Part Number20540732LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
