Made in USA

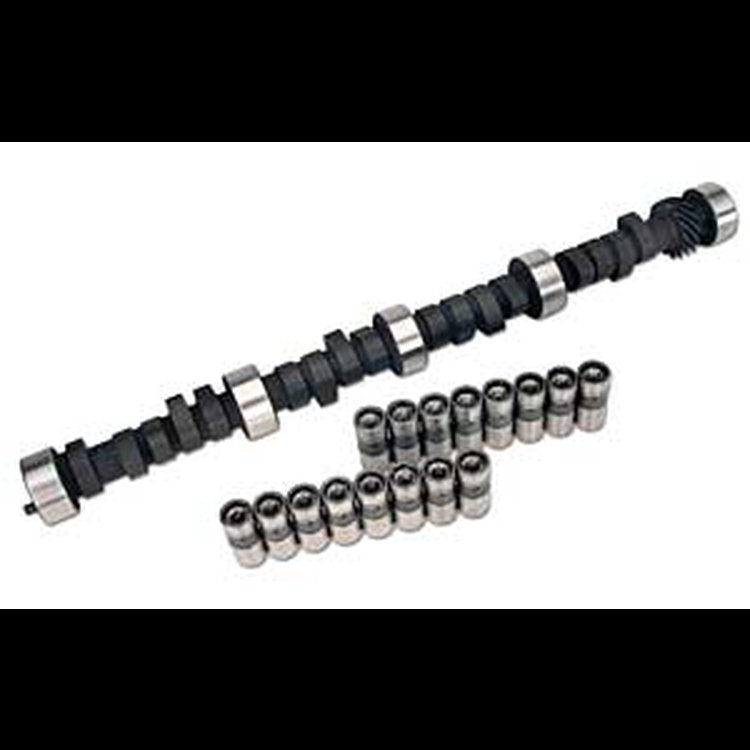

Street/Strip Solid Flat Tappet Cam and Lifter Kit Small Block Chevy 262-400 Lift: .507" /.519"
Product Discontinued
LUNATIPART NUMBER: 638-30120513LK

Street/Strip Solid Flat Tappet Cam and Lifter Kit Small Block Chevy 262-400 Lift: .507" /.519"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy - Street/Strip
    Street/Strip Solid Flat Tappet Cam and Lifter Kit
    Small Block Chevy 262-400
  • Lift: .507''/.519''
  • Duration: 296 Deg / 306 Deg
  • LSA: 106 Deg
  • RPM Range: 3200-6800

    Good overall powerin 327-400 c.i. Pro Street or oval track. Needs 3500-3800 RPM Stall converter, headers, 10.5:1 compression ratio and 4.10 gearing. Rough idle.

    Lunati Mechanical Series Camshafts are designed to fill the need for a particular application. These camshafts are computer designed to take advantage of maximum area under the curve without destroying valve train components.

    Show More

    Bracket Master II: The best choice for high performance street machines and mild performance bracket racing applications. They provide excellent power over a broad power band and give that lopey idle that is so popular.

    Street/Strip: These cams produce excellent power in mild to higher performance street and strip applications when moderate engine modifications have been made with proper gearing.

    Drag Race: The Lunati Drag Race Cams are available for a wide range of racing applications from Sportsman to Pro. These camshafts produce unmatched torque for launching the vehicle off the starting line and maximum horsepower for a strong finish.

    Oval Track: This cam series from Lunati is designed to pull hard off the corner and have a broad powerband to accelerate down the straights. The right fit for pavement or dirt, these camshafts will give you the power and control that you need.

    Camshaft & Lifter Kits: Include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Complete Kits: Include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.

Part TypeCamshaft Kit
Product LineLunati Mechanical Series Camshafts
BrandLUNATI
Package Height3.0
Package Width5.6
Package Length25.4
Weight13.04 PG
Part CategoryPerformance Parts
Cam StyleMechanical flat tappet
Locks IncludedNo
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.507
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,200-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.03 in (0.762 mm)
Rocker Arms IncludedNo
Computer-Controlled CompatibleNo
Lobe Separation (Deg)106
Lifter StyleMechanical flat tappet
Advertised Duration296 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.519
Valve Springs IncludedNo
Valve Lift With Factory Rocker Arm Ratio0.507 int./0.519 exh.
Camshaft Gear Attachment3-bolt
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.03 in (0.762 mm)
Advertised Intake Duration296
Intake Duration At 050 Inch Lift249
Exhaust Duration At 050 Inch Lift259
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration306
Part FitmentSemi Universal
Duration At 050 Inch Lift249 int./259 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number30120513LKLUN
Package Qty1
Package TypeEA
