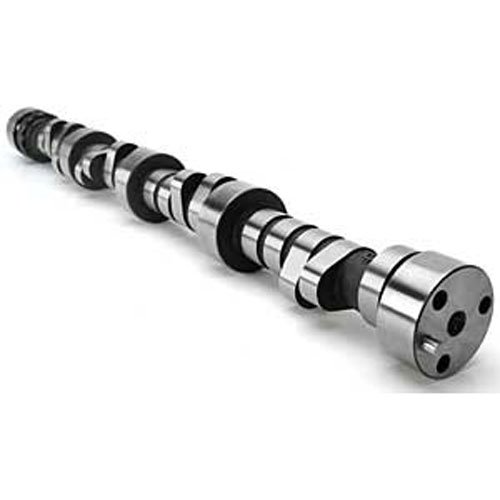

Big Block Chevy 396-454
- Voodoo Solid Roller Camshaft
- Lift: .663''/.680''
- Duration: 279 Deg /285 Deg
- LSA: 110 Deg
- RPM Range: 2800-7000
Excellent cam for street/strip applications. Good mid range and excellent upper RPM power. Needs 3200-3500 RPM stall converter, headers, 10.5:1 compression and 4.10 gears. Rough idle.
Big Block Chevy
Part TypeCamshaft
BrandLUNATI
Package Height3.0
Package Width3.0
Package Length24.5
Weight12.0 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.663 int./0.680 exh.
Cam StyleMechanical roller tappet
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.018 in (0.457 mm)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.663
Advertised Intake Duration279
Basic Operating Rpm Range2,800-7,000
Intake Valve Lash0.018 in (0.457 mm)
Intake Duration At 050 Inch Lift249
Exhaust Duration At 050 Inch Lift255
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Advertised Exhaust Duration285
Advertised Duration279 int./285 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.68
Duration At 050 Inch Lift249 int./255 exh.
Valve Springs RequiredYes
Vendor Part Number40110733LUN
Package Qty1
Package TypeEA
