Big Block Chevy 396-454

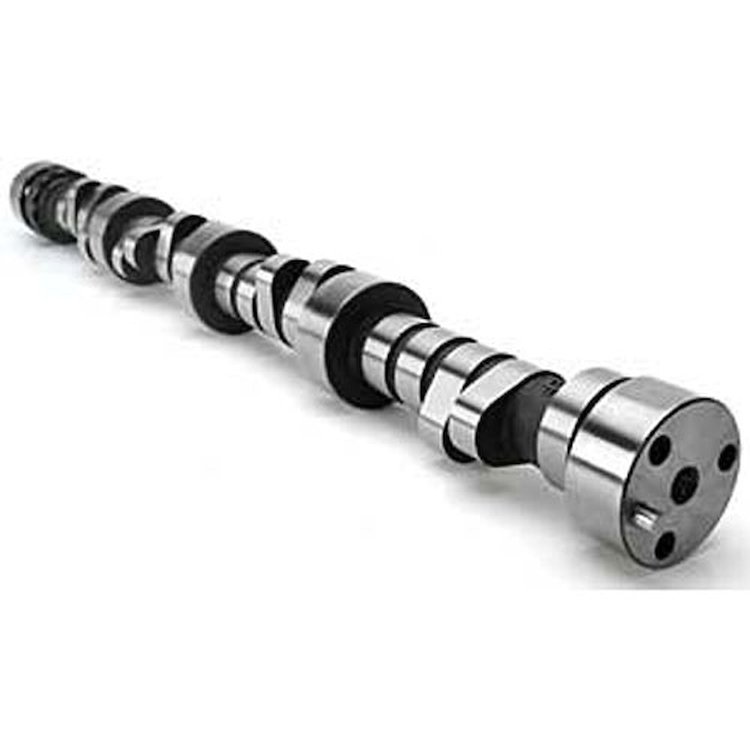

- Voodoo Solid Roller Camshaft
- Lift: .680''/.680''
- Duration: 285 Deg /293 Deg
- LSA: 110 Deg
- RPM Range: 3000-7200
Good cam for Pro Street or Mild braket racing applications. Works well in 454-540 motors. Needs 3500+ stall, headers, 10.5:1 compression and 4.10 gearing. Rough idle.
Big Block Chevy
Part TypeCamshaft
BrandLUNATI
Package Height2.8
Package Width3.0
Package Length24.4
Weight10.95 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.680 int./0.680 exh.
Cam StyleMechanical roller tappet
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lash0.018 in (0.457 mm)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.68
Advertised Intake Duration285
Basic Operating Rpm Range3,000-7,200
Intake Valve Lash0.018 in (0.457 mm)
Intake Duration At 050 Inch Lift255
Exhaust Duration At 050 Inch Lift263
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Advertised Exhaust Duration293
Advertised Duration285 int./293 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.68
Duration At 050 Inch Lift255 int./263 exh.
Valve Springs RequiredYes
Vendor Part Number40110734LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
