Product Discontinued
LUNATIPART NUMBER: 638-40110734LK

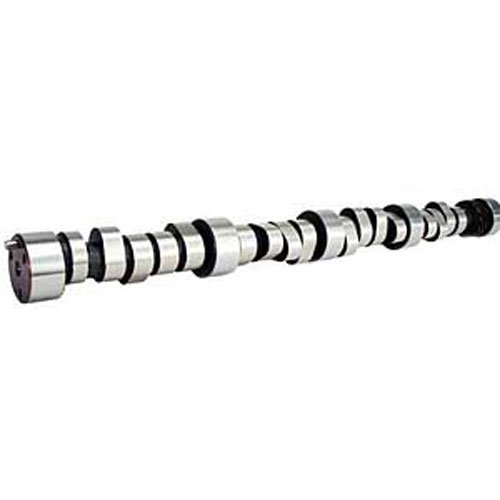

Voodoo Solid Roller Camshaft and Lifter Kit Big Block Chevy Lift: .680" /.680"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Chevy 396-454
- Voodoo Solid Roller Camshaft and Lifter Kit
- Lift: .680''/.680''
- Duration: 285 Deg /293 Deg
- LSA: 110 Deg
- RPM Range: 3000-7200
Good cam for Pro Street or Mild braket racing applications. Works well in 454-540 motors. Needs 3500+ stall, headers, 10.5:1 compression and 4.10 gearing. Rough idle.
Big Block Chevy
Part TypeCamshaft Kit
BrandLUNATI
Package Height2.12
Package Width2.75
Package Length24.75
Weight15.5 PG
Part CategoryPerformance Parts
Cam StyleMechanical roller tappet
Locks IncludedNo
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.68
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-7,200
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.018 in (0.457 mm)
Rocker Arms IncludedNo
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Lifter StyleMechanical flat tappet
Advertised Duration285 int./293 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.68
Valve Springs IncludedNo
Valve Lift With Factory Rocker Arm Ratio0.680 int./0.680 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.018 in (0.457 mm)
Advertised Intake Duration285
Intake Duration At 050 Inch Lift255
Exhaust Duration At 050 Inch Lift263
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration293
Part FitmentSemi Universal
Duration At 050 Inch Lift255 int./263 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number40110734LKLUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
