Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

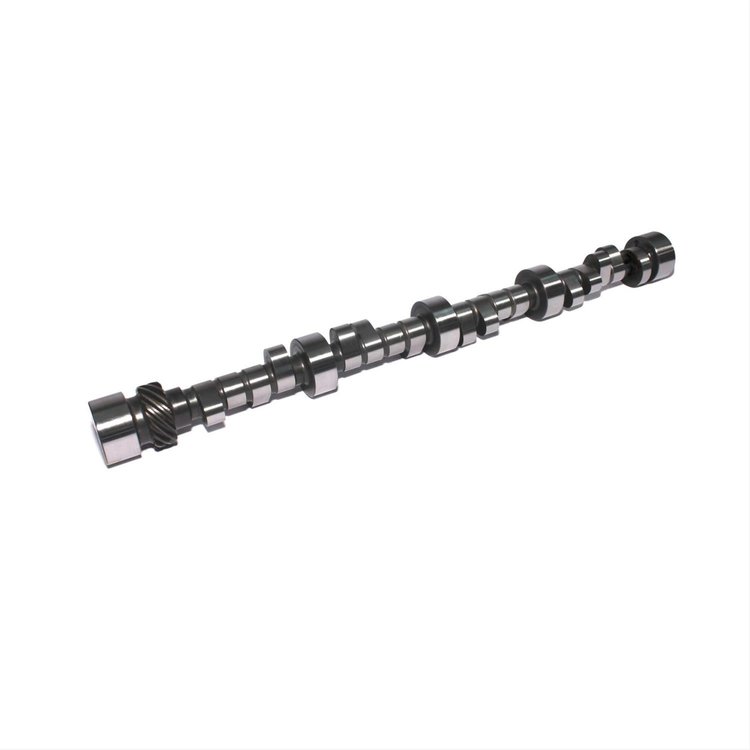

CAM CS V8 DR302SR06
LUNATI/HOLLEY 40120941 Features:
The Lunati Drag Race Cams are available for a wide range of racing applications from Sportsman to Professional. These camshafts produce unmatched torque for launching the vehicle off the starting line and maximum horsepower for a strong finish.Part TypeCamshaft
BrandLUNATI
Package Height3.0
Package Width3.0
Package Length24.5
Weight10.0 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.640 int./0.640 exh.
Cam StyleMechanical roller tappet
QuantitySold individually
Exhaust Valve Lash0.026 in (0.66 mm)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.64
Advertised Intake Duration302
Basic Operating Rpm Range4,000-7,800
Intake Valve Lash0.026 in (0.66 mm)
Intake Duration At 050 Inch Lift271
Exhaust Duration At 050 Inch Lift279
Computer-Controlled CompatibleNo
Lobe Separation (Deg)106
Advertised Exhaust Duration310
Advertised Duration302 int./310 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.64
Duration At 050 Inch Lift271 int./279 exh.
Valve Springs RequiredYes
Vendor Part Number40120941LUN
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
