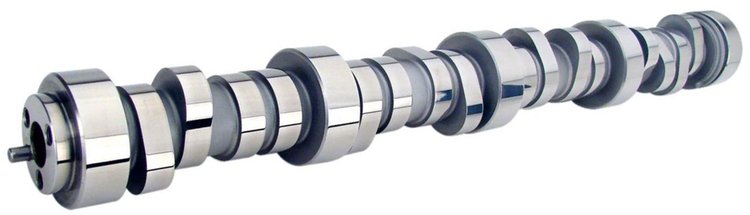

CAM CS V8 SB-DR328SR10
LUNATI/HOLLEY 40121177 Features:
The Lunati Drag Race Cams are available for a wide range of racing applications from Sportsman to Professional. These camshafts produce unmatched torque for launching the vehicle off the starting line and maximum horsepower for a strong finish. These cams also have a .900" base circle diameter for more cam to connecting rod clearance.Part TypeCamshaft
BrandLUNATI
Package Height3.0
Package Width3.0
Package Length24.5
Weight10.0 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.669 int./0.633 exh.
Cam StyleMechanical roller tappet
QuantitySold individually
Exhaust Valve Lash0.026 in (0.66 mm)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.669
Advertised Intake Duration328
Basic Operating Rpm Range4,600-8,500
Intake Valve Lash0.024 in (0.61 mm)
Intake Duration At 050 Inch Lift285
Exhaust Duration At 050 Inch Lift295
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Advertised Exhaust Duration338
Advertised Duration328 int./338 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.663
Duration At 050 Inch Lift285 int./295 exh.
Valve Springs RequiredYes
Vendor Part Number40121177LUN
Package Qty1
Package TypeEA
