Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

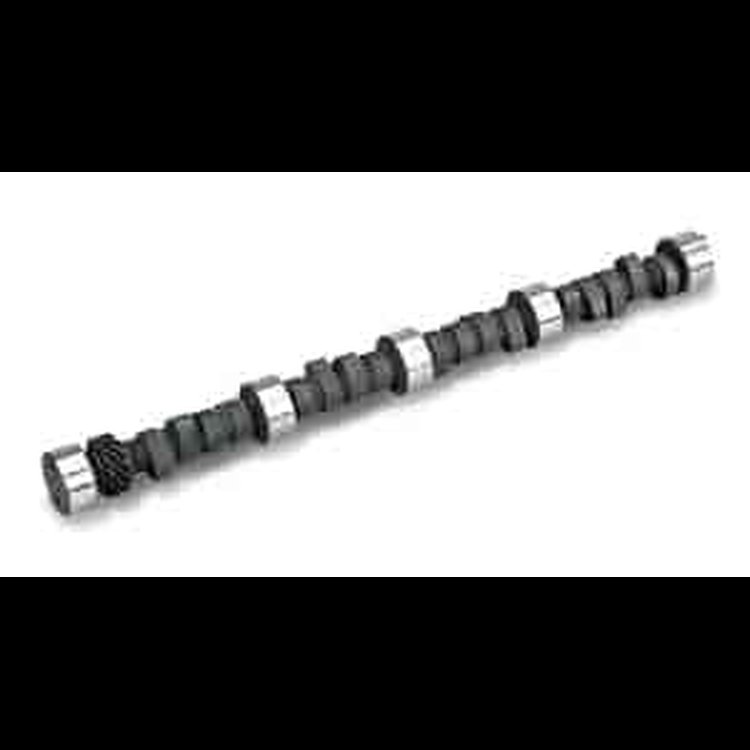

- Lunati Cams 396-454 SP CAM
Drag Race Camshaft; Mech.Flat Tappet; RPM 3200-7200; Adv. Dur. 288 Int./298 Exh.; Valve Lift .615 Int./.620 Exh.; Lobe Angle 110 Deg.;
Part TypeCamshaft
BrandLUNATI
Package Height2.25
Package Width2.62
Package Length25.0
Weight10.1 PG
Part CategoryPerformance Parts
Valve Lift With Factory Rocker Arm Ratio0.615 int./0.620 exh.
Cam StyleMechanical flat tappet
QuantitySold individually
Grind NumberM249-259
Exhaust Valve Lash0.022 in (0.559 mm)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.615
Advertised Intake Duration288
Basic Operating Rpm Range3,200-7,200
Intake Valve Lash0.02 in (0.508 mm)
Intake Duration At 050 Inch Lift249
Exhaust Duration At 050 Inch Lift259
Computer-Controlled CompatibleNo
Lobe Separation (Deg)110
Advertised Exhaust Duration298
Advertised Duration288 int./298 exh.
Part FitmentSemi Universal
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.62
Duration At 050 Inch Lift249 int./259 exh.
Valve Springs RequiredYes
Vendor Part Number40224
Package Qty1
Package TypeEA
