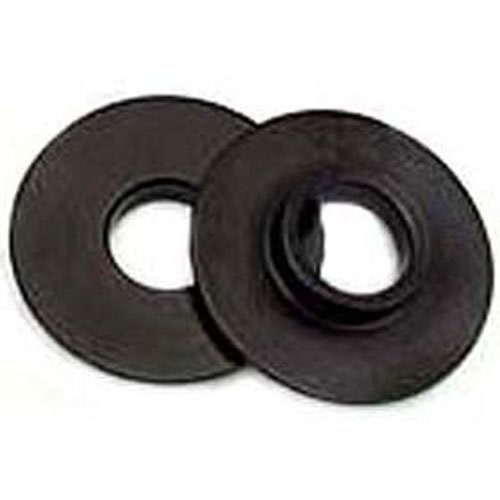

Valve Spring I.D. Locator Cups Thickness: .060"

Name: Valve Spring I.D. Locator Cups Thickness: .060"
Brand: LUNATI
SKU: 638-86694-16
Price: 42.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Valve Spring Locator Cups

Valve Spring I.D. Locator Cups

Thickness: .060"

Inside Diameter: .570"

Outside Diameter: 1.450"

Spring Inside Diameter: 1.000"

16/pkg

LUNATI/HOLLEY 86694-16 Features:

Standard shims cannot handle the extreme pressure that high performance racing engines place on the springs. The solution to this problem is seats made from a high-strength steel alloy that hold the spring in place. The cup version of the seat sits outside of the spring and requires the head to be machined, while the locators fit on the inside of the spring and require no machining.

Part TypeValve Spring Seat

BrandLUNATI

Package Height1.2

Package Width4.1

Package Length7.1

Weight0.83 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number86694-16LUN

Package Qty1

Package TypeEA
