Made in USA
ATI GEAR DRIVE SYS 429-46
Product Discontinued
LUNATIPART NUMBER: 638-93130

ATI GEAR DRIVE SYS 429-46

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

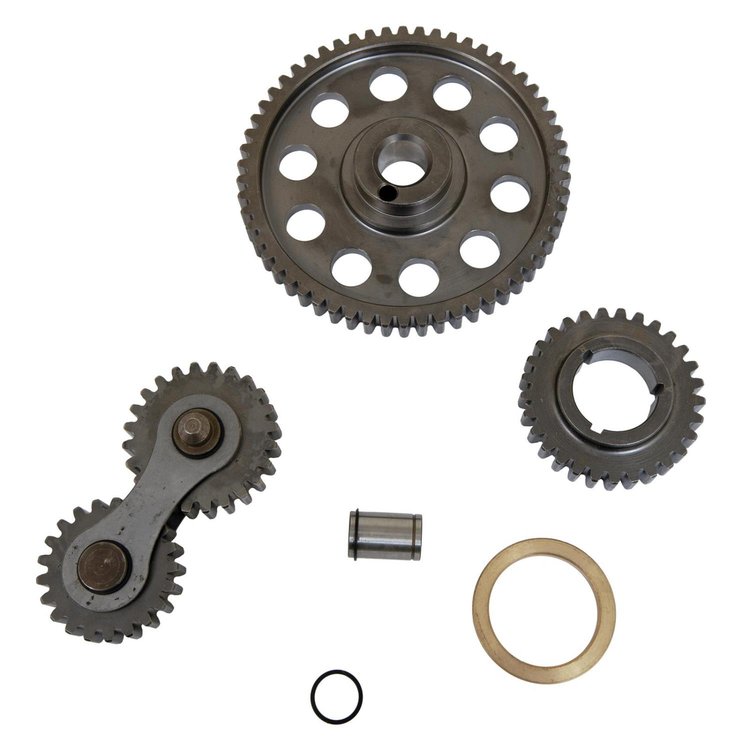

ATI GEAR DRIVE SYS 429-46

LUNATI/HOLLEY 93130 Features:

The Lunati Gear Drives have a distinctive design that greatly reduces timing movement through the RPM range and are meticulously machined from billet steel for timing accuracy. The four-degree advance/retard can be achieved through either cam gear dowel pin inserts or three keyway crank gears. A heat treatment is applied for durability, and the kit includes dowel pin advance/retard inserts, a rollerized cam button for use with a roller cam and a lock plate with the bolts. Lunati Gear Drives are the right kit choice for street performance applications looking for a blower sound.
    Part TypeTiming Gear Set
    BrandLUNATI
    Package Height1.75
    Package Width6.5
    Package Length9.75
    Weight3.74 PG
    Part CategoryPerformance Parts
    NoisyNo
    Gaskets IncludedNo
    Thrust Bearing IncludedYes
    Offset Bushings IncludedNo
    Camshaft Gear Attachment1-bolt
    Maximum Advance/Retard At Crankshaft4 degree
    QuantitySold as a kit
    Maximum Advance/Retard At Camshaft4 degree
    Part FitmentSemi Universal
    Gear MaterialSteel
    Gear Drive Idler StyleDual idler
    Vendor Part Number93130LUN
    Package Qty1
    Package TypeEA
