Product Discontinued
MAGNAFLOWPART NUMBER: 642-13645

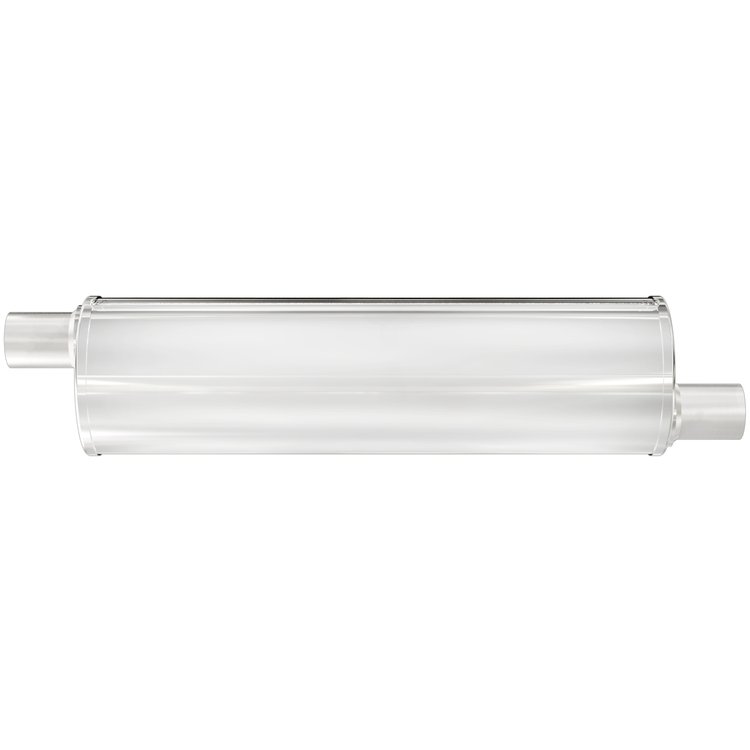

6" Round XL 3-Chamber Muffler Offset In/Offset Out: 2.25"/2.25" Body Length: 27" Overall Length: 33" Satin Finish
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
6'' Round Case
- 6" Round XL 3-Chamber Muffler
Offset In/Offset Out: 2.25"/2.25"
Body Length: 27"
Overall Length: 33"
Satin Finish

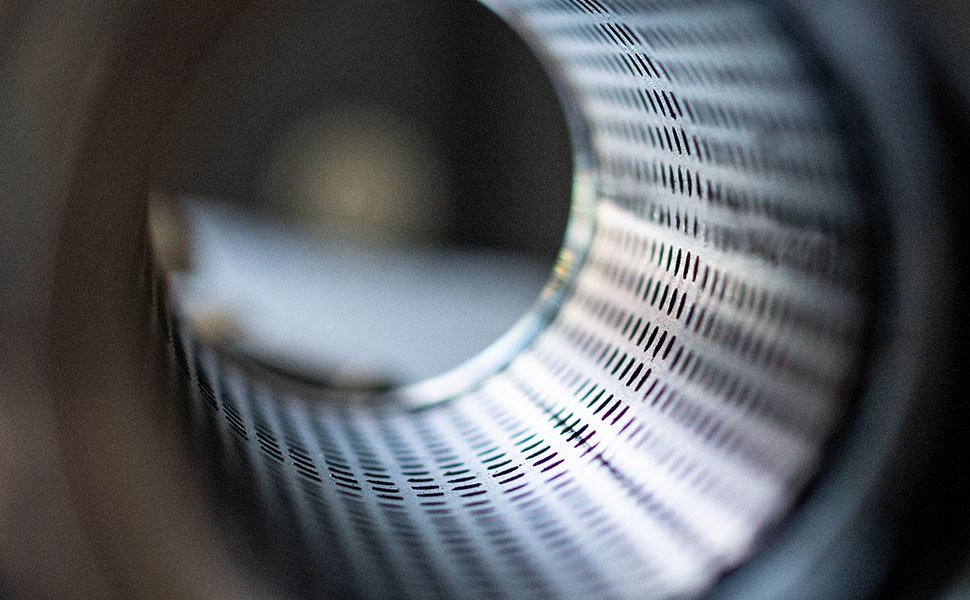

- MagnaFlow's XL Mufflers consist of three chambers that combine large diameter perforated tubing and strategically placed sound baffles. This process reduces unwanted resonance and creates horsepower. Each XL muffler is designed with a large diameter perforated core that eliminates the flow restrictions of louvered style cores.
Part TypeMuffler
Product LineMagnaflow XL 3-Chamber Mufflers
BrandMAGNAFLOW
Package Height7.5
Package Width7.75
Package Length36.75
Weight13.82 PG
Part CategoryPerformance Parts
Outlet QuantityOne
Inlet LocationOffset
Inlet PositionFront
Inlet TypeSingle Offset Inlet
Inlet Size (In.)2.25
Outlet StyleStandard, without tip
Muffler FinishNatural
Body Length27 in (685.8 mm)
Muffler Count1
Inlet Diameter2.25 in (57.15 mm)
Inlet QuantityOne
Muffler MaterialStainless steel
Outlet Size2.25 in (57.2 mm)
PositionN/A
Inlet Connection TypePipe Connection
Outlet Diameter2.25 in (57.2 mm)
QuantitySold individually
Overall Length33 in (838.2 mm)
MaterialStainless Steel
Case Length27 in (685.8 mm)
Internal ConstructionPerforated tube
Case ShapeRound
Body Width6 in (152.4 mm)
Muffler ConfigurationOffset/Offset
Outlet LocationOffset
Body Height6 in (152.4 mm)
Outlet TypeSingle Offset Outlet
Case Outside Diameter6 in (152.4 mm)
Outlet PositionRear
Vendor Part Number13645
Package Qty1
Package TypeEA
