Product Discontinued
MAGNAFLOWPART NUMBER: 642-13763

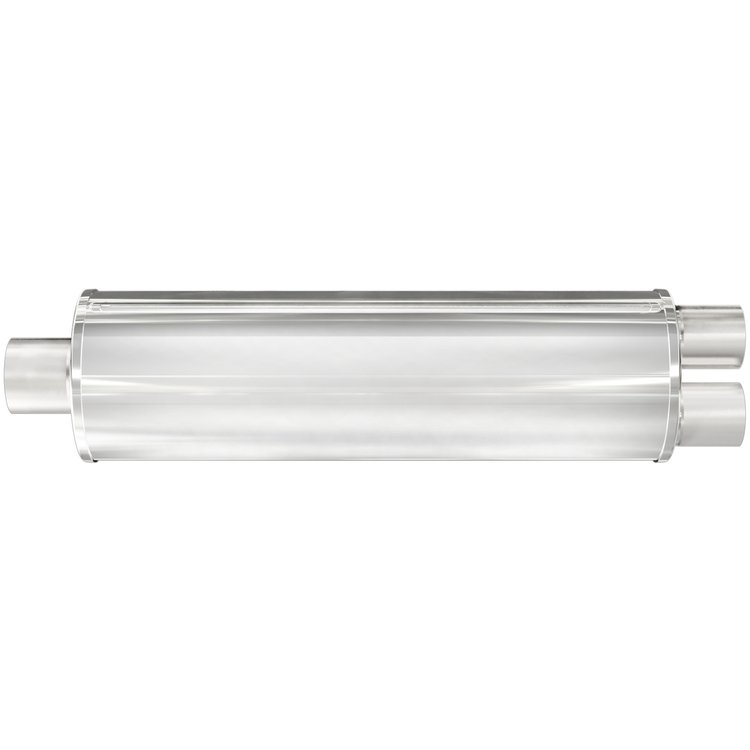

7" Round XL 3-Chamber Muffler Single In/Dual Out: 3"/2.5" Body Length: 24" Overall Length: 30" Satin Finish
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
7'' Round Case
- 7" Round XL 3-Chamber Muffler
Single In/Dual Out: 3"/2.5"
Body Length: 24"
Overall Length: 30"
Satin Finish
- MagnaFlow's XL Mufflers consist of three chambers that combine large diameter perforated tubing and strategically placed sound baffles. This process reduces unwanted resonance and creates horsepower. Each XL muffler is designed with a large diameter perforated core that eliminates the flow restrictions of louvered style cores.
Part TypeMuffler
Product LineMagnaflow XL 3-Chamber Mufflers
BrandMAGNAFLOW
Package Height7.8
Package Width7.9
Package Length32.2
Weight14.9 PG
Part CategoryPerformance Parts
Outlet QuantityTwo
Inlet LocationCenter
Inlet PositionFront
Inlet TypeSingle Center Inlet
Inlet Size (In.)3
Outlet StyleStandard, without tip
Muffler FinishNatural
Body Length24 in (609.6 mm)
Muffler Count1
Inlet Diameter3 in (76.2 mm)
Inlet QuantityOne
Muffler MaterialStainless steel
Outlet Size2.5 in (63.5 mm)
PositionN/A
Inlet Connection TypePipe Connection
Outlet Diameter2.5 in (63.5 mm)
QuantitySold individually
Overall Length30 in (762 mm)
MaterialStainless Steel
Case Length24 in (609.6 mm)
Internal ConstructionPerforated tube
Case ShapeRound
Body Width7 in (177.8 mm)
Muffler ConfigurationCenter/Dual
Outlet LocationOffset
Body Height7 in (177.8 mm)
Outlet TypeDual Outlet
Case Outside Diameter7 in (177.8 mm)
Outlet PositionRear
Vendor Part Number13763
Package Qty1
Package TypeEA
