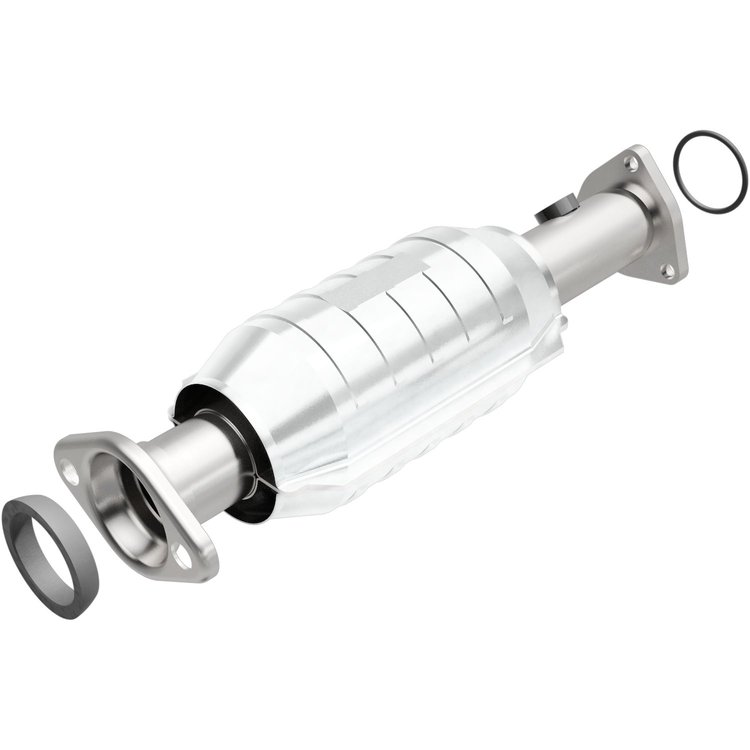

22628 HM Grade Direct-Fit Catalytic Converter Fits Select Honda Models
InfoVehicle Info Needed
MAGNAFLOWPART NUMBER: 642-22628

22628 HM Grade Direct-Fit Catalytic Converter Fits Select Honda Models

$50600
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Acura/Honda
HM Grade Direct-Fit Catalytic Converter
  • Fits Select Honda Models
  • Stainless Steel

    Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 22628. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass d esign also allows for greater thermal efficiency. Designed to fit the 1996-1998 Honda Civic and 1996-1997 Honda Civic del Sol, this direct-fit catalytic converter also interchanges with OE parts 18160-P2R-A00 and 18160-P2R-A50. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.

    Magnaflow 22628 HM Grade Direct-Fit Catalytic Converter Features:

    • Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
    • High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
    • Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
    • Simplifies installation with essential gaskets and hardware being included in the box
    • Durable 308 stainless steel MIG welds
  • Part TypeCatalytic Converter
    BrandMAGNAFLOW
    Package Height4.8
    Package Width7.1
    Package Length17.8
    Weight6.09 PG
    Part CategoryPerformance Parts
    Converter Style3-way
    Outlet Quantity1
    EmissionNon-California (49-State)
    Catalytic Converter FormatPre-Catalytic Converter and Main Catalytic Converter
    Inlet Size (In.)OE
    Heat ShieldYes
    Heat Shield AttachedNo
    Air TubeNo
    Inlet QuantityOne
    Case MaterialStainless steel
    Universal Or Specific FitSpecific
    Outlet SizeOEM
    Cat Converter Air Tube AdapterNot Air Tube Kit Adaptable
    Converter Body SizeOEM
    Oxygen Sensor LocationPre and Post Converter
    Body SizeOEM
    QuantitySold individually
    Overall Length12.5 in (317.5 mm)
    Core Substrate MaterialCeramic
    MaterialStainless Steel
    Inlet AttachmentStock flange
    California LegalNo
    California Air Board ApprovedNo
    Substrate MaterialCeramic honeycomb
    Outlet AttachmentStock flange
    Exhaust Pipe MaterialStainless Steel
    Exhaust Component Mount TypeUses Factory Hangers
    Recommended UseConverter
    Part FitmentDirect Fit
    Vendor Part Number22628
    Package Qty1
    Package TypeEA
